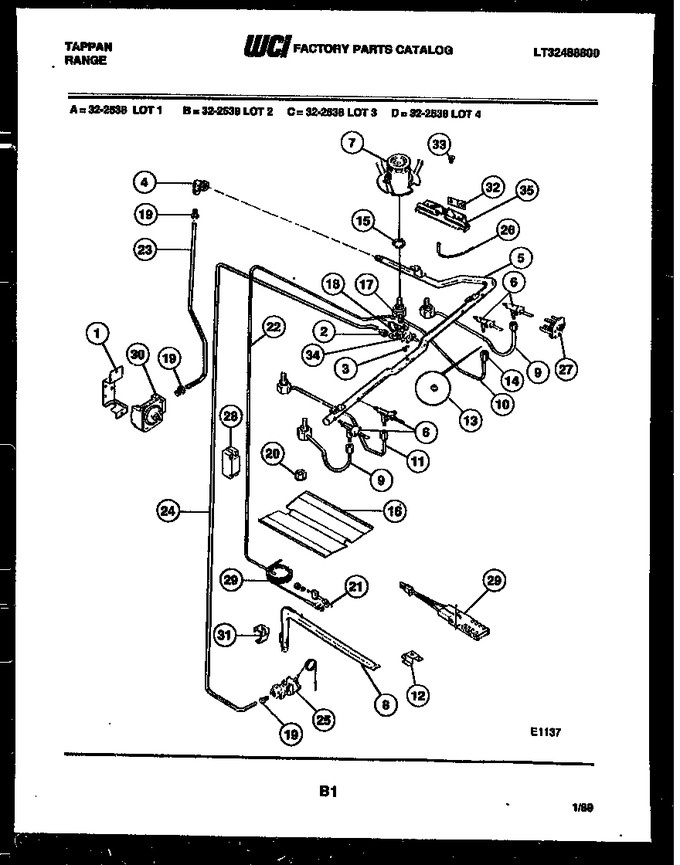

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Body Parts


05 - Burner, Manifold And Gas Control


06 - Broiler Drawer Parts


07 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131183		Bracket Regulator		Appelez-nous	-
2	3018622		Thermostat		Appelez-nous	-
3	3018601		Adapter-thermostat		Appelez-nous	-
4	3012204		Elbow		Appelez-nous	-
5	3131339		Manifold, Pipe		Appelez-nous	-
6	3017846		Valve 3 Pos.		Appelez-nous	-
7	3011567		Burner Top (4)		Appelez-nous	-
8	3131571		Buner-oven		Appelez-nous	-
9	3131970		Buner-tube Lf, Rf		Appelez-nous	-
10	079T033H02		Burner, Tube		Appelez-nous	-
11	3131338		Burner Tube Lr		Appelez-nous	-
13	247T074P01		Ferrule		Appelez-nous	-
14	3131148		Nut-compression		Appelez-nous	-
15	3013279		Nut, Special				$ 2.34
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
18	3131403		Fitting, Loxit		Appelez-nous	-
19	3131261		Fitting, Loxit		Appelez-nous	-
20	3013272		Nut - Baffle		Appelez-nous	-
21	3018613		Pilot-oven		Appelez-nous	-
22	3018623		Tube-oven Pilot 3/8		Appelez-nous	-
23	3014477		Tube-aluminum 3/8		Appelez-nous	-
24	3018624		Tube-aluminum 3/8		Appelez-nous	-
25	3131405		Valve-safety		Appelez-nous	-
26	3012879		Igniter-electric		Appelez-nous	-
27	3131580		Switch		Appelez-nous	-
28	3200332		Igniter-module		Appelez-nous	-
29	3934047		Igniter-electric		Appelez-nous	-
30	3018606		Control-regulator		Appelez-nous	-
31	072T821F01		Bracket, Oven Burner Support		Appelez-nous	-
32	612T121F01		Retainer, Igniter (4)		Appelez-nous	-
33	3051420		Pop Rivet		Appelez-nous	-
34	695T220P01		Switch, Oven Igniter		Appelez-nous	-
35	136T355W03		Channel, Flash Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
