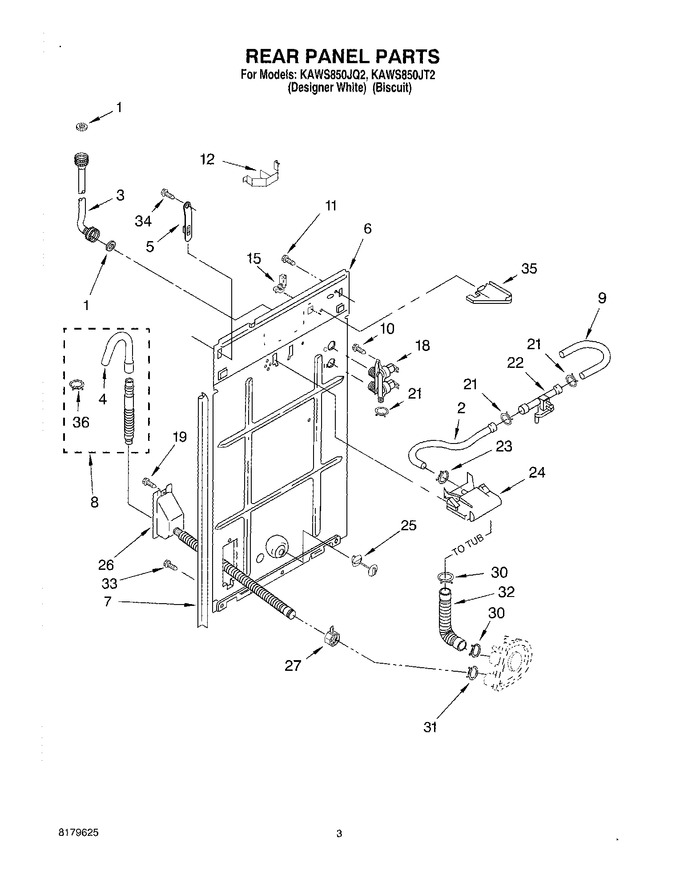

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 6.93 | |||||
| 2 | WP3349365 | Hose, Sensor (upper) (Replaces: 3349365) |
|
$ 19.21 | |||||
| 3 | WP89503 | Hose, Water Inlet ((blue Coupler)) (Replaces: 3949374) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet ((red Coupler)) (Replaces: 3949375) |
|
Immediately | $ 21.68 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 7.00 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 9 | WP3357319 | Hose, Vacuum Break (Replaces: 3357319) |
|
$ 24.49 | |||||
| 10 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 11 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 12 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3952164) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 1/2 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 22 | 3352282 | Sensor-etc-inline |
|
$ 66.68 | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.01 | ||||
| 26 | 8317941 | Hose, Drain (anchored) |
|
$ 25.66 | |||||
| 27 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 31 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 10.38 | |||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 33 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 34 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 35 | 3348424 | Sheild, Suds |
|
- | |||||
| 36 | WP3357331 | Clamp, Hose (Replaces: 3366913) |
|
$ 6.80 |
