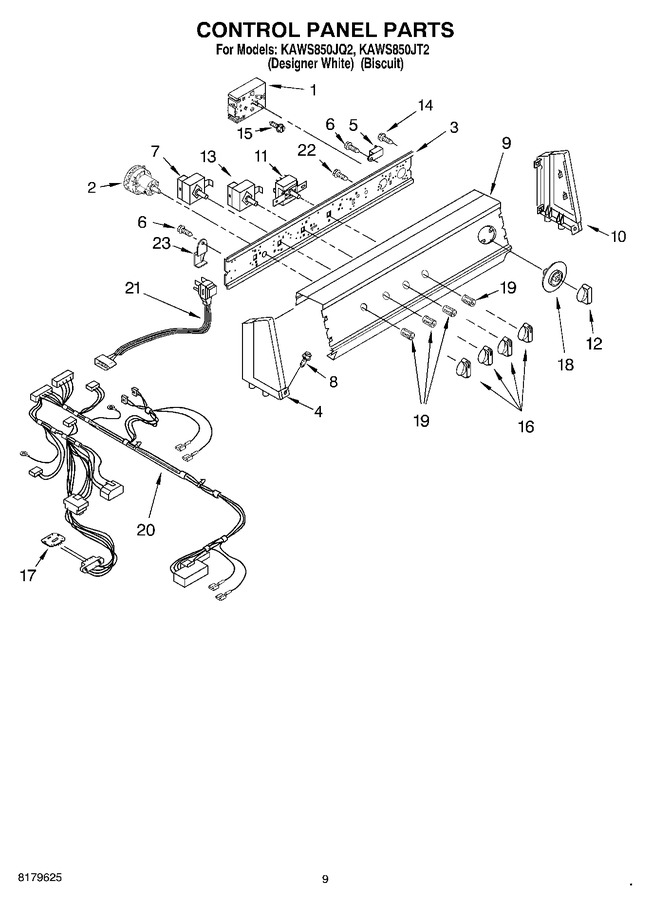

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3952888 | Timer, Control 60hz. (motor Not Serviced) |
|
$ 196.35 | |||||
| 2 | W10339326 | Switch, Water Level (Replaces: 3950420) |
|
Immediately | $ 79.17 | ||||
| 3 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 104.57 | |||||
| 4 | 8274353 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 8274355 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 5 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 114.90 | |||||
| 6 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 7 | 3950354 | Switch, Water Temperature |
|
- | |||||
| 8 | WP388326 | Screw (Replaces: 388326) |
|
$ 7.30 | |||||
| 9 | 3952542 | Panel, Console (biscuit) |
|
- | |||||
| 9 | 3952541 | Panel, Console (white) |
|
- | |||||
| 10 | 8274351 | Cap End (r.h.) (biscuit) |
|
- | |||||
| 10 | 8274349 | Cap End (r.h.) (white) |
|
- | |||||
| 11 | 3952578 | Switch, Rotary |
|
$ 93.94 | |||||
| 12 | 3952694 | Knob, Timer (biscuit) |
|
- | |||||
| 12 | 3361052 | Knob, Timer (white Model) |
|
- | |||||
| 13 | W10168264 | Switch, Rotary (Replaces: 3950356) |
|
$ 113.71 | |||||
| 14 | WP3351614 | Screw, 10-24 X 1/2 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 15 | WP3400064 | Screw, Timer (Replaces: 3400064) |
|
$ 6.26 | |||||
| 16 | 3949700 | Knob, Control (includes No.19) (white) |
|
- | |||||
| 16 | 3949704 | Knob, Control (includes No.19) (biscuit) |
|
- | |||||
| 17 | 3407125 | Control, Etc |
|
- | |||||
| 18 | 3952695 | Dial, Timer (biscuit) |
|
- | |||||
| 18 | 3361174 | Dial, Timer (white Model) |
|
- | |||||
| 19 | WP688805 | Clip, Knob (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 20 | 3952894 | Harness, Wire |
|
- | |||||
| 21 | W10820044 | Cord, Power (Replaces: 3948063) |
|
$ 128.46 | |||||
| 22 | 3400073 | Screw, Ground |
|
- | |||||
| 23 | 8283343 | Retainer, Harness |
|
- |
