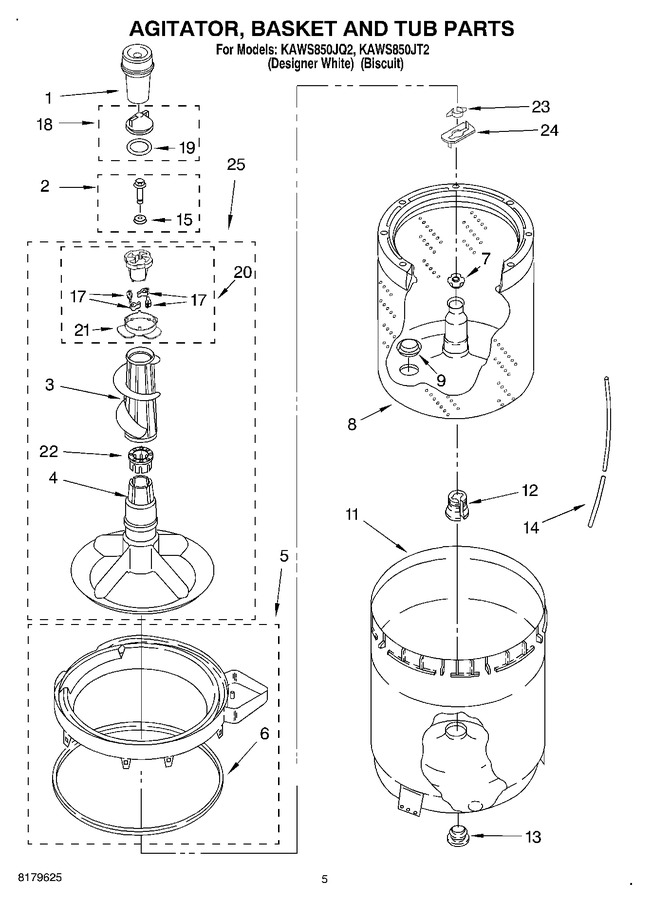

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63580 | Dispenser, Rinse |
|
Immediately | $ 2.37 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | 3950581 | Clothes Mover |
|
$ 14.82 | |||||
| 4 | 3950580 | Agitator |
|
- | |||||
| 5 | W10880720 | Tub Ring (Replaces: 63851) |
|
Immediately | $ 200.01 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 3359585) |
|
Immediately | $ 25.43 | ||||
| 7 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 8 | W10389328 | Basket & Balance Ring (also Order No. 9) (Replaces: 3951983) |
|
$ 364.12 | |||||
| 9 | 285868 | Filter Plug (4) (Replaces: 8522271) |
|
Immediately | $ 19.51 | ||||
| 11 | 63849 | Tub |
|
$ 262.53 | |||||
| 12 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 13 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 14 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 53.94 | ||||
| 15 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 17 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 18 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 11.16 | ||||
| 19 | WPW10072840 | Seal, Inner Auger (Replaces: 3348855) |
|
Immediately | $ 7.85 | ||||
| 20 | 285811 | Cam Driven (Replaces: 3363663) |
|
Immediately | $ 29.33 | ||||
| 21 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 7.06 | |||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 23 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 21.20 | |||||
| 24 | WP8543666 | Washer, Agitator (Replaces: 3355921) |
|
Immediately | $ 10.55 | ||||
| 25 | 3950579 | Agitator (complete Asy.) |
|
$ 125.01 |
