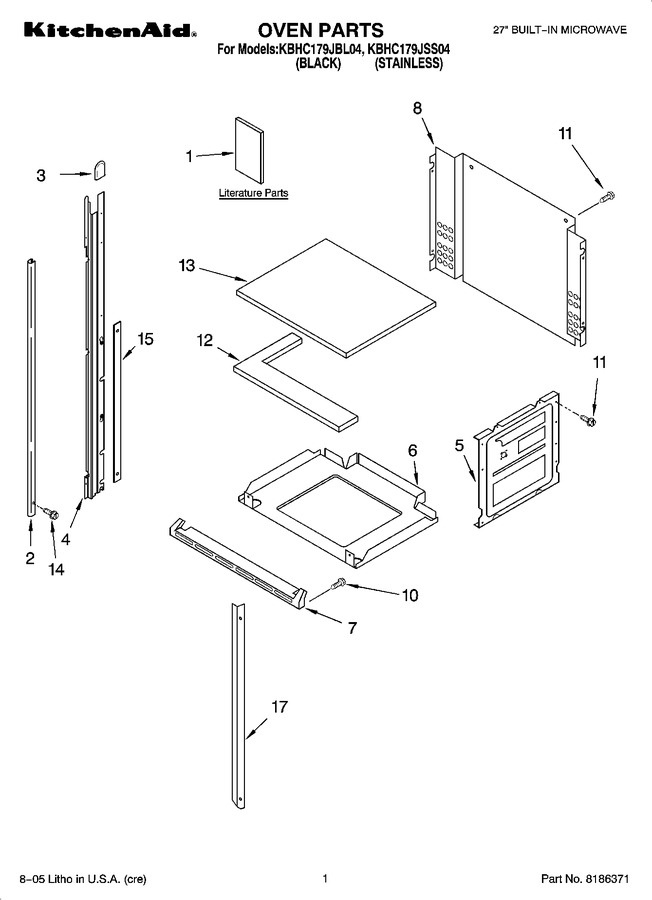

01 - Oven Parts


02 - Control Panel Parts


03 - Microwave Compartment Parts


04 - Cabinet And Stirrer Parts


05 - Top Venting Parts


06 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	4452615		Installation Instructions		Appelez-nous	-
1	8302974		Use & Care Guide		Appelez-nous	-
1	4453330		Cook Guide Label		Appelez-nous	-
1	4452967		Chart, Hs Cook		Appelez-nous	-
1	8303854		Tech Sheet		Appelez-nous	-
1	4449264		Easy Set Guide		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	4452624		Trim, Side (rh Black)		Appelez-nous	-
2	4452556		Trim, Side (rh Stainless)		Appelez-nous	-
2	4452625		Trim, Side (lh Black)		Appelez-nous	-
2	4452557		Trim, Side (lh Stainless)		Appelez-nous	-
3	4451605		Cap, Spacer				$ 38.55
4	4456545		Rail, Side (right Side)		Appelez-nous	-
4	4456546		Rail, Side (left Side)		Appelez-nous	-
5	4452559		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
6	4456400		Base, Chassis		Appelez-nous	-
7	4456537		Trim, Bottom (stainless)		Appelez-nous	-
7	4456539		Trim, Bottom (black)		Appelez-nous	-
8	4452553		Chassis, Back		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
12	4452492		Insulation-grill		Appelez-nous	-
13	4452491		Insulation-top		Appelez-nous	-
14	WP694091		Screw (s.steel)   (Replaces: 694091)				$ 6.47
14	WP8281236		Screw (black)   (Replaces: 8281236)				$ 6.80
15	4455471		Spacer, Rail (2)		Appelez-nous	-
17	4455475		Bracket (2)		Appelez-nous	-
