SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Microwave Compartment Parts

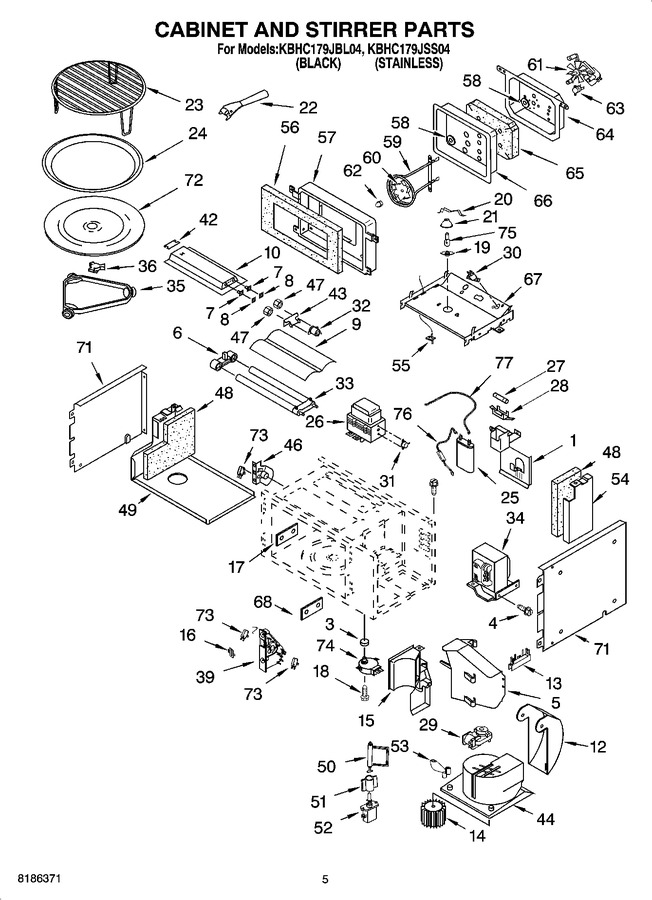

04 - Cabinet And Stirrer Parts


05 - Top Venting Parts


06 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4375437		Bracket, Capacitor		Appelez-nous	-
3	4375252		Rubber Ring				$ 38.27
4	4375038		Screw		Appelez-nous	-
5	4375314		Air Duct, Magnetron		Appelez-nous	-
6	4375253		Support, Tube		Appelez-nous	-
7	4375421		Plug, Ceramic		Appelez-nous	-
8	4375255		Bushing		Appelez-nous	-
9	4375256		Reflector		Appelez-nous	-
10	4375257		Chamber, Reflector		Appelez-nous	-
12	4375450		Duct, Inlet		Appelez-nous	-
13	4375316		Insulation, Switch		Appelez-nous	-
14	4375322		Fan Wheel				$ 38.29
15	4375317		Duct, Air		Appelez-nous	-
16	4375415		Block, Slide		Appelez-nous	-
17	4375248		Cover Plate, Upper		Appelez-nous	-
18	8206180		Screw   (Replaces: 4375251)				$ 11.55
19	W11193483		Lens, Lamp   (Replaces: 4375318)			Immediately	$ 89.85
20	W10465869		Spring   (Replaces: 4375319)			Immediately	$ 88.94
21	423107022541		Reflector   (Replaces: 4375320)				$ 73.63
22	4393900		Pan Handle		Appelez-nous	-
23	4452220		Rack				$ 146.03
24	W11512490		Crisp Plate   (Replaces: 4393536)			Immediately	$ 109.35
25	WP4375020		Capacitor   (Replaces: 4375436)				$ 180.65
26	WP4375424		Magnetron   (Replaces: 4375424)			Immediately	$ 400.61
27	WP4375321		Fuse   (Replaces: 4375321)			Immediately	$ 16.45
28	W10245194		Block, Fuse   (Replaces: 4375231)				$ 74.84
29	4375278		Motor, Blower				$ 224.90
30	4375279		Thermostat				$ 50.64
31	WP4375079		Thermostat   (Replaces: 4375423)				$ 78.44
32	4375281		Thermostat				$ 57.27
33	4375408		Q Tube Assembly		Appelez-nous	-
34	WP4375286		Transformer   (Replaces: 4375438)				$ 296.24
35	4375406		Ring, Turntable		Appelez-nous	-
36	WP8183788		Shaft, Turntable   (Replaces: 4375407)				$ 24.08
39	W10727408		Bracket, Hinge (left)   (Replaces: 4375412)			Immediately	$ 218.06
39	W10727408		Bracket, Hinge (right)   (Replaces: 4375413)			Immediately	$ 218.06
42	4375331		Plate, Grill		Appelez-nous	-
43	4375332		Bracket		Appelez-nous	-
44	4375441		Fan Cap		Appelez-nous	-
46	W10727408		Switch Holder (right)   (Replaces: 4375413)			Immediately	$ 218.06
46	W10727408		Switch Holder (left)   (Replaces: 4375412)			Immediately	$ 218.06
47	4375258		Nut		Appelez-nous	-
48	4375410		Insulation (right Side)				$ 90.80
48	4375409		Insulation (left Side)		Appelez-nous	-
49	4375411		Plate, Side - Bottom		Appelez-nous	-
50	4375425		Valve		Appelez-nous	-
51	4375428		Screw To Valve		Appelez-nous	-
52	461967842541		Thermoactuator   (Replaces: 4375427)				$ 61.97
53	4375426		Air Bleed		Appelez-nous	-
54	4375439		Shield, Heat Right		Appelez-nous	-
55	4375422		Sensor, Temp.				$ 76.27
56	4375420		Insulation		Appelez-nous	-
57	4375419		Duct, Heater		Appelez-nous	-
58	4375416		Washer		Appelez-nous	-
59	4375417		Element, Heater		Appelez-nous	-
60	W11512064		Fan   (Replaces: 4375418)			Immediately	$ 146.87
61	4375429		Motor, Fan				$ 171.39
63	W11607085		Thermostat   (Replaces: 4375430)			Immediately	$ 38.07
64	4375431		Shield, Heat		Appelez-nous	-
65	4375432		Insulation		Appelez-nous	-
66	4375433		Chamber, Heat		Appelez-nous	-
67	4375437		Isolation Plate		Appelez-nous	-
68	4375338		Cover Plate				$ 38.98
71	4375342		Side Plate (right)		Appelez-nous	-
71	4375341		Side Plate (left)		Appelez-nous	-
72	W11373838		Turntable   (Replaces: 4455919)			Immediately	$ 70.65
73	W10211972		Switch   (Replaces: 4375346)			Immediately	$ 47.16
74	W10642989		Motor, Turntable   (Replaces: 4375347)			Immediately	$ 171.39
75	WPW10440740		Lamp   (Replaces: 4375348)			Immediately	$ 33.20
76	WPW10687786		Rectifier   (Replaces: 4375349)			Immediately	$ 27.30
77	4375435		Cable		Appelez-nous	-
