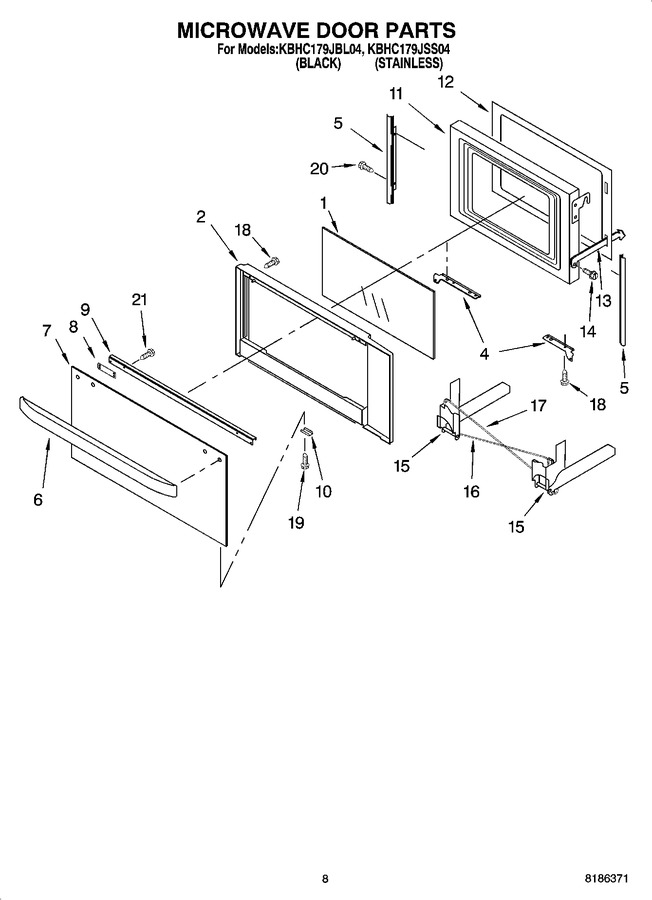

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4448937 | Glass, Middle |
|
$ 66.02 | |||||
| 2 | 8303555 | Frame, Door |
|
$ 118.65 | |||||
| 4 | 4449141 | Bracket, Mounting (right Side) |
|
$ 31.33 | |||||
| 4 | 4449142 | Bracket, Mounting (left Side) |
|
$ 52.12 | |||||
| 5 | 4449086 | Filler, Side (left Side) |
|
$ 36.10 | |||||
| 5 | 4449083 | Filler, Side (right Side) |
|
$ 36.44 | |||||
| 6 | 4452087 | Handle, Door (stainless) |
|
- | |||||
| 6 | 4452500 | Handle, Door (black) |
|
- | |||||
| 7 | 4452210 | Glass, Outer (black) |
|
- | |||||
| 7 | 4452258 | Glass, Outer (stainless) |
|
- | |||||
| 8 | 4451055 | Spacer (stainless) |
|
- | |||||
| 9 | 4452330 | Bracket, Handle |
|
- | |||||
| 10 | 4450863 | Retainer, Glass-clip (black) |
|
- | |||||
| 10 | 4451432 | Retainer, Glass-clip (stainless) |
|
- | |||||
| 11 | 4375339 | Door, Plate |
|
- | |||||
| 12 | 4375414 | Frame, Inner |
|
- | |||||
| 13 | 4375330 | Strap, Door |
|
- | |||||
| 14 | 4375313 | Screw |
|
- | |||||
| 15 | WP4375324 | Hinge, Door (right) (Replaces: 4375324) |
|
$ 79.40 | |||||
| 15 | WP4375323 | Hinge, Door (left) (Replaces: 4375323) |
|
$ 79.70 | |||||
| 16 | WP4452395 | Spring, Torsion (lh) (Replaces: 4452395) |
|
Immediately | $ 125.26 | ||||
| 17 | WP4451008 | Sprng, Torsion (rh) (Replaces: 4451008) |
|
$ 114.84 | |||||
| 17 | WP4452396 | S.steel (rh) (Replaces: 4452396) |
|
Immediately | $ 88.74 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 19 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 20 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 21 | W10276642 | Screw (black) (Replaces: 4451040) |
|
$ 5.49 | |||||
| 21 | WPW10132940 | Screw (s.steel) (Replaces: 3196184) |
|
$ 8.50 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 4452400 | Lead, Ground Strap |
|
$ 38.93 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| 4450950 | Conduit, Combo |
|
- | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 4450831 | Wire, Ground |
|
$ 7.43 | ||||||
| 8303838 | Harness, Main Filter |
|
$ 281.80 | ||||||
| 4453215 | Harness, Main |
|
$ 150.97 | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| N/A | Wiring Harness Parts |
|
- |
