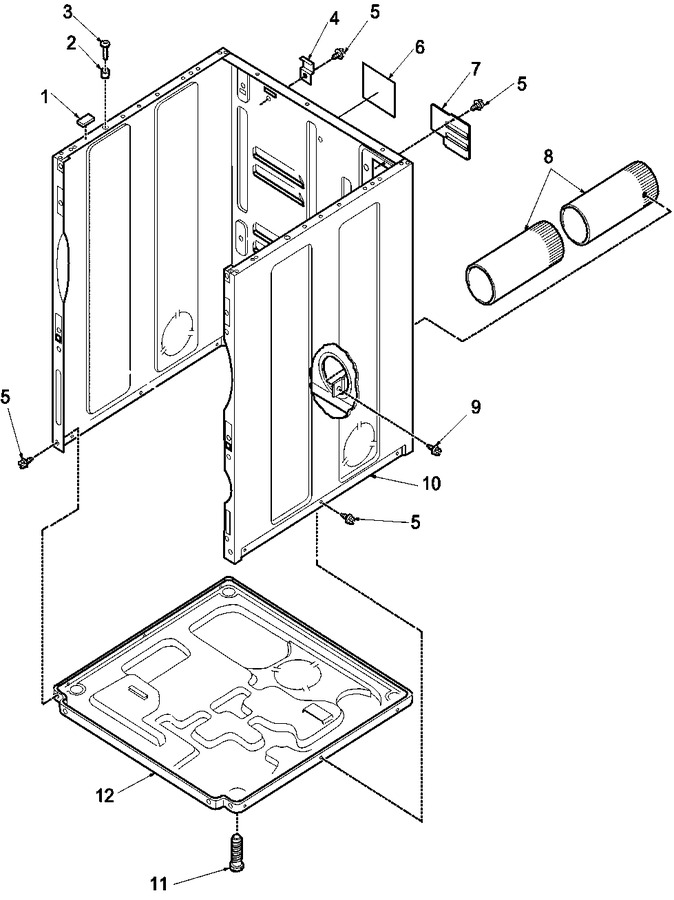

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	D510136		Hinge, Top   (Replaces: 500003)				$ 6.95
5	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
6	500495		Sticker		Appelez-nous	-
7	500114		Panel, Access Cover		Appelez-nous	-
8	500064		Exhaust Duct		Appelez-nous	-
9	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
10	500001WP		Cabinet, Dryer & Washer (wht)		Appelez-nous	-
11	Y500101		Leg, Leveling (plastic)				$ 25.84
12	D514245		Base, Dryer   (Replaces: 500070)				$ 101.22
NI	Sub. To D510502W		Kit,flex Vent-display   (Replaces: 521P3)		Appelez-nous	-
NI	Sub. To D513016W		Side Vent Kit   (Replaces: 528P3)		Appelez-nous	-
NI	Y56222		Cord,lead-in		Appelez-nous	-
