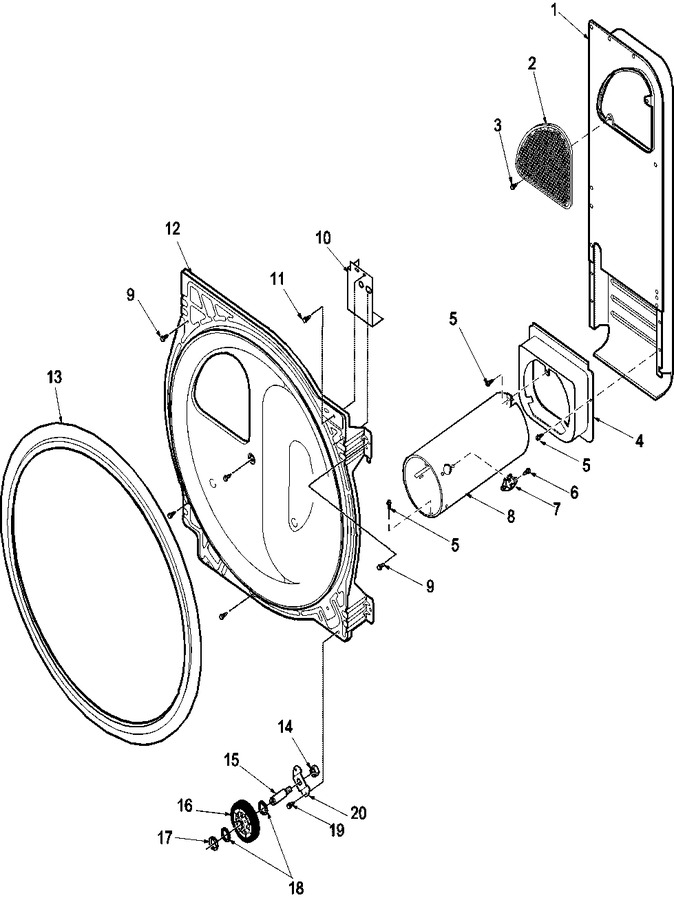

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	503607		Assembly, Heater Duct		Appelez-nous	-
2	D500820		Cover,outlet-heat Duct   (Replaces: 500820)			Immediately	$ 33.83
3	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
4	500122		Shroud, Heat Duct		Appelez-nous	-
5	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
6	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
7	Y61886		Thermostat, Limit		Appelez-nous	-
8	Y61888		Duct, Combustion		Appelez-nous	-
9	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
10	Y504185		Shield, Terminal Block		Appelez-nous	-
11	D501285		Screw, No.12 X 9/16   (Replaces: 501285)				$ 2.76
12	502614W		Bulkhead, Rear		Appelez-nous	-
13	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
14	56156		Nut, 3/8-16 Serrated				$ 6.95
15	WP56461		Shaft   (Replaces: 56461)				$ 85.03
16	WP37001042		Assembly, Cylinder Roller   (Replaces: 500214)			Immediately	$ 15.26
17	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
18	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
19	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
20	WP40113601		Bracket, Cylinder Roller   (Replaces: 500062)				$ 83.99
NI	22506P		Adhesive,3m-1300-5 Oz.		Appelez-nous	-
NI	503607		Assembly, Heater Duct		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
