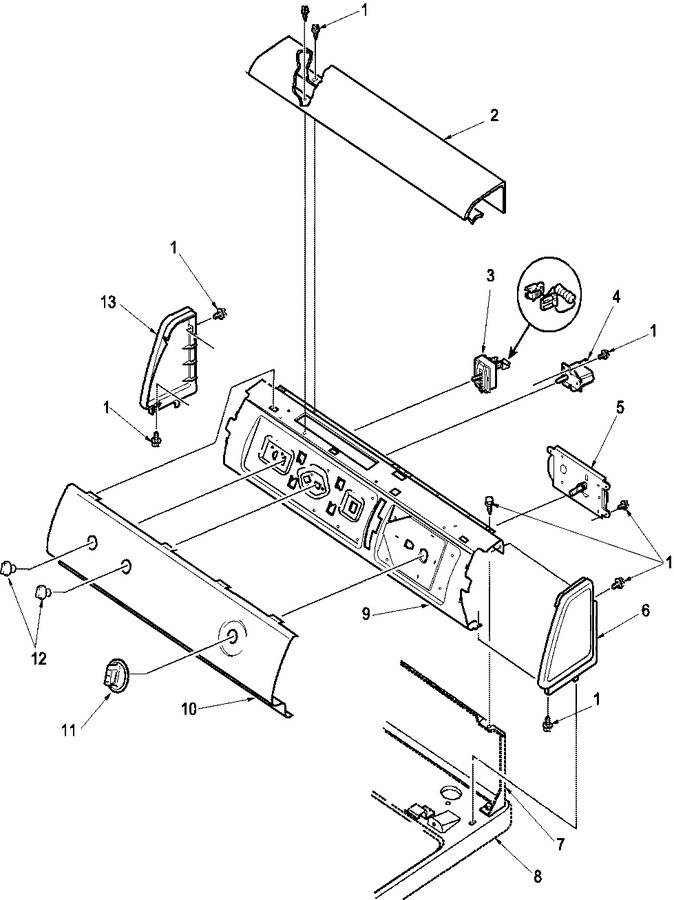

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| 2 | D505808W | Cover, Top (wht) (Replaces: 503674W) |
|
$ 91.43 | |||||
| 3 | Y503997 | Switch, Fabric Selector |
|
- | |||||
| 4 | Y504191 | Signal |
|
- | |||||
| 5 | D519034 | Timer, 3 Cycle (Replaces: Y504546) |
|
Immediately | $ 315.88 | ||||
| 6 | D504008WP | Cap-end Rh (Replaces: 504008W) |
|
$ 19.23 | |||||
| 7 | 500343 | Panel,back(home Hood) |
|
- | |||||
| 8 | 500085WP | Cabinet Top, White |
|
- | |||||
| 9 | 503901 | Panel,support Control (mech) |
|
$ 25.75 | |||||
| 10 | 504569W | Pnl, Graphics |
|
- | |||||
| 11 | Y504002 | Assy,timer Knob-white |
|
- | |||||
| 12 | WP36701W | Assy,knob-rotary-white (Replaces: 33688) |
|
Immediately | $ 44.31 | ||||
| 13 | D504009WP | Cap-end Lh (Replaces: 504009W) |
|
Immediately | $ 22.20 | ||||
| NI | 504775 | Resistor, (4.7 K Ohm 10w) |
|
$ 109.81 |
