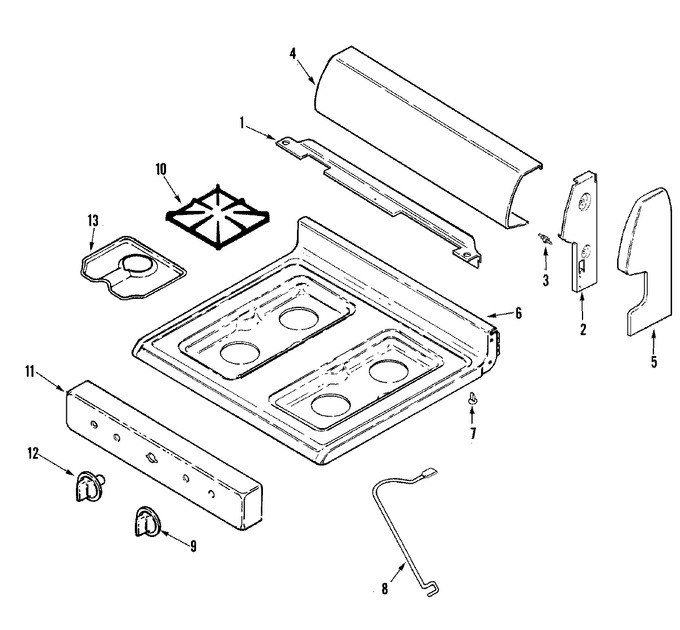

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P209-60 | Screw | 10 |
|
- | ||||
| 1 | 74005319 | Shield, Vent Deflector | 10 |
|
- | ||||
| 1 | 74002409 | Clip, Spacer | 10 |
|
- | ||||
| 2 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 2 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74002402 | Bracket, Panel (lt) | 10 |
|
- | ||||
| 2 | 74002403 | Bracket, Panel (rt) | 10 |
|
- | ||||
| 3 | 74002404 | Pin, Main Top Hinge | 10 |
|
- | ||||
| 4 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 4 | 74008215 | Panel, Control (wht) | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74002438 | End Cap, Panel (rt-wht) | 10 |
|
- | ||||
| 5 | 74002439 | End Cap, Panel (lt-wht) | 10 |
|
- | ||||
| 5 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 5 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 6 | 74002410 | Top, Main (wht) | 10 |
|
- | ||||
| 7 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 8 | 74004084 | Prop Rod | 10 |
|
- | ||||
| 9 | 74002497 | Knob, Burner Valve (wht) | 10 |
|
$ 15.13 | ||||
| 10 | WP2003X030-00 | Grate (blk) (Replaces: 74001086) | 10 |
|
$ 157.41 | ||||
| 11 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 11 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 11 | 74002442 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 12 | 74002496 | Knob, Thermostat (wht) | 10 |
|
- | ||||
| 12 | 74010132 | Knob, Thermostat (wht) | 12 |
|
$ 16.78 | ||||
| 13 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 |
