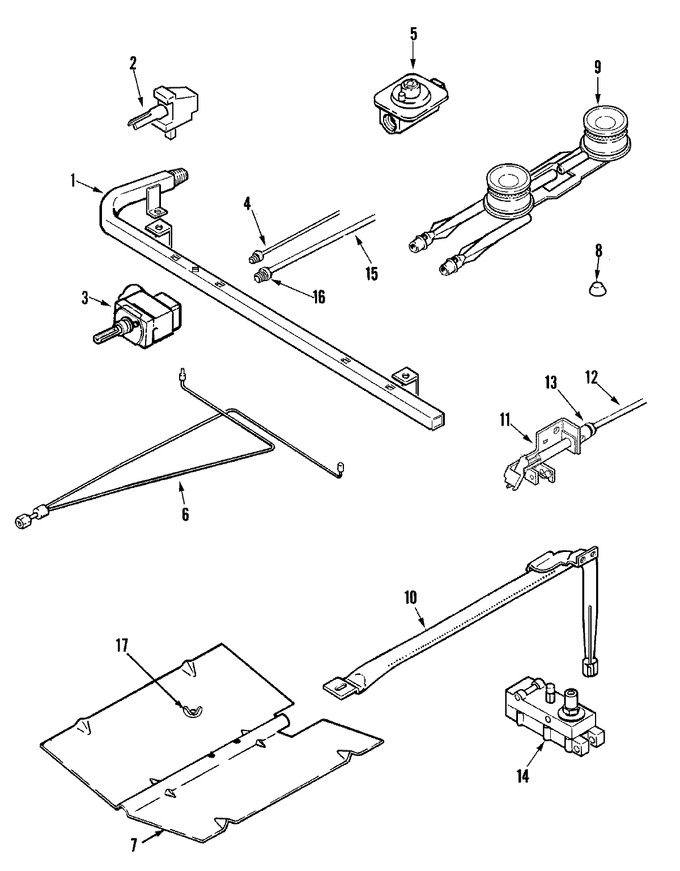

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010235 | Pipe, Manifold | 12 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74002424 | Pipe, Manifold | 10 |
|
- | ||||
| 2 | 74002383 | Valve, Burner | 10 |
|
- | ||||
| 2 | 12002286 | Kit, Valve (mueller) | 11 |
|
- | ||||
| 2 | 74002433 | Screw, Valve | 10 |
|
- | ||||
| 3 | 74006182 | Thermostat | 10 |
|
- | ||||
| 3 | 7101P010-60 | Screw, Control | 10 |
|
- | ||||
| 3 | WP74009917 | Thermostat (gas) (Replaces: 74009917) | 12 |
|
$ 269.81 | ||||
| 3 | WP74009857 | Screw, T-stat/valve Mtg (Replaces: 74009857) | 12 |
|
$ 4.95 | ||||
| 4 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 5 | 7510P002-60 | Regulator, Pressure | 10 |
|
- | ||||
| 6 | WPW10206112 | Pilot Asy., Oven Burner (Replaces: 74010141) | 12 |
|
$ 64.71 | ||||
| 6 | 74002426 | Pilot, Burner | 10 |
|
$ 65.96 | ||||
| 6 | 74009922 | Tubing, Oven Pilot (w/nut) | 12 |
|
$ 8.87 | ||||
| 6 | 7103P128-60 | Nut, Top Pilot | 10 |
|
- | ||||
| 7 | 74002393 | Baffle, Oven Burner | 10 |
|
- | ||||
| 8 | 74002435 | Cone, Burner Pilot | 10 |
|
- | ||||
| 9 | 74010148 | Burner, Top (rear) | 13 |
|
$ 80.15 | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74003332 | Burner, Top | 10 |
|
$ 108.84 | ||||
| 9 | 74010149 | Burner, Top (frt) | 13 |
|
$ 52.76 | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74002434 | Burner, Oven | 10 |
|
$ 94.06 | ||||
| 10 | 74010136 | Bracket, Burner Supply | 10 |
|
- | ||||
| 11 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 11 | 74006183 | Pilot, Oven | 10 |
|
$ 74.59 | ||||
| 12 | 74009922 | Tubing, Oven Pilot (w/nut) | 12 |
|
$ 8.87 | ||||
| 12 | 74006184 | Tubing, Pilot | 10 |
|
- | ||||
| 13 | 1555261K | Nut & Ferrule (3/16``) | 10 |
|
- | ||||
| 14 | 74010137 | Nut, Hex | 10 |
|
- | ||||
| 14 | 74002428 | Valve, Oven | 10 |
|
- | ||||
| 14 | 74010135 | Holder, Orifice | 12 |
|
- | ||||
| 14 | 74010136 | Bracket, Burner Supply | 12 |
|
- | ||||
| 14 | W11573574 | Screw, Hex W/washer (Replaces: 74010138) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 15 | 74006185 | Tubing, Oven Valve | 10 |
|
- | ||||
| 15 | 74010133 | Tubing, Bake Burner Supply | 10 |
|
- | ||||
| 16 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 17 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 18 | W10124350 | Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit) | 10 |
|
- | ||||
| 18 | 74009923 | Kit, Natural To Lp | 11 |
|
$ 55.85 |
