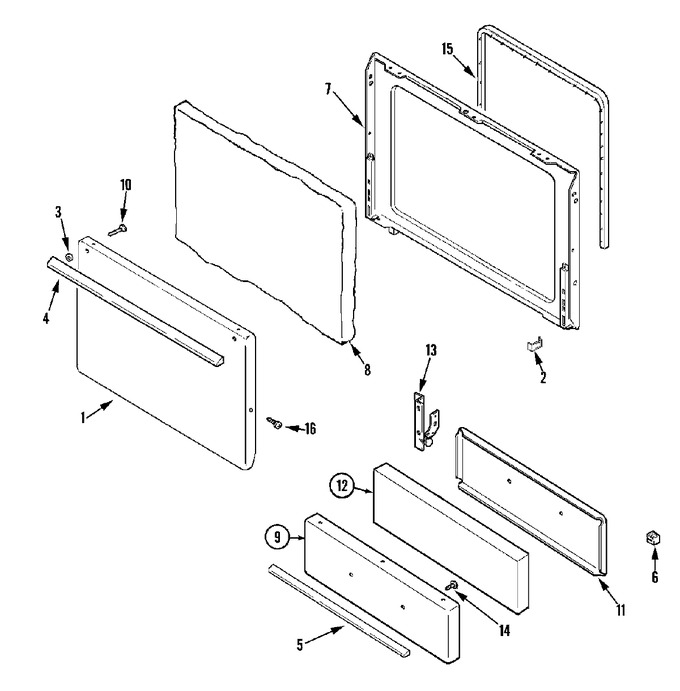

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F096-71		Panel, Door (wht)	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	7112P034-60		Clip, Door	10	Appelez-nous	-
3	WP74005058		Spacer, Handle (wht)   (Replaces: 8010P089-60)	10			$ 7.05
4	74007088		Handle, Door (wht)	10	Appelez-nous	-
5	74007088		Handle, Door (wht)	10	Appelez-nous	-
6	74001663		Glide	10	Appelez-nous	-
7	74003240		Lining, Door	10	Appelez-nous	-
8	4804F050-60		Insulation, Door 2``	10	Appelez-nous	-
9	74001729		Panel, Drawer (wht)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	WP3387230		Screw   (Replaces: 74002483)	10		Immediately	$ 7.69
11	74007553		Lining, Drawer	10	Appelez-nous	-
12	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
13	74007560		Hinge, Drawer	10			$ 61.30
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74002481		Screw	10			$ 5.82
15	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
16	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
