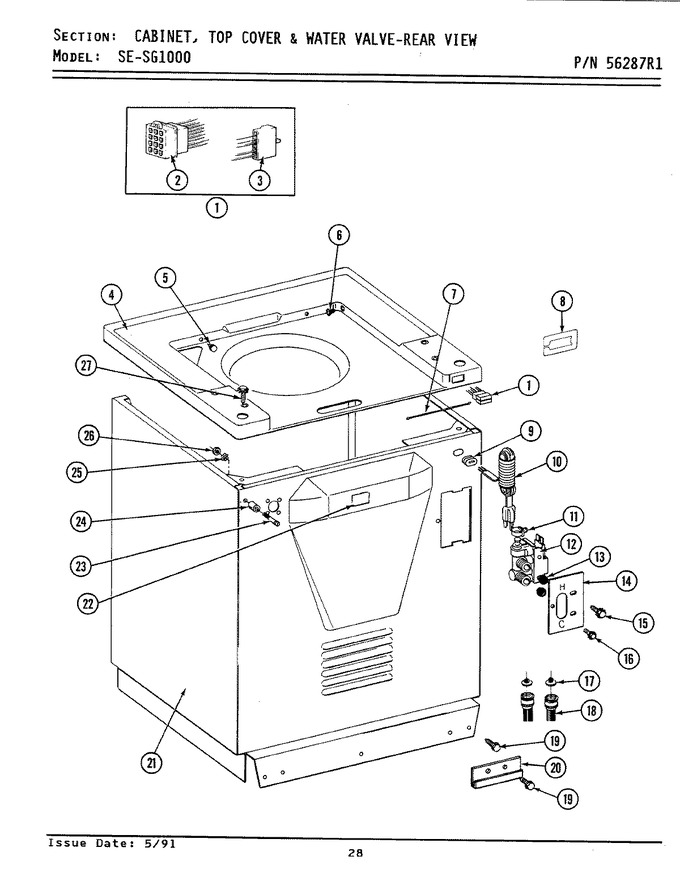

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
213076 |
|
Pin For Plug |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
912080 |
|
Art Not Used |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
912016 |
|
Receptacle |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
206420 |
|
Edge Connector Assembly |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
206422 |
|
Wire Harness-dc |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
Y312953 |
|
Receptacle |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
206849 |
|
D.c. Wire Harness |
07 |
Appelez-nous
|
- |
|
|
|
| 1 |
Y312658 |
|
Receptacle, Sensor Ground Wire |
00 |
Appelez-nous
|
- |
|
|
|
| 1 |
912083 |
|
Receptacle |
00 |
Appelez-nous
|
- |
|
|
|
| 2 |
215539 |
|
Pin Housing |
07 |
Appelez-nous
|
- |
|
|
|
| 2 |
213087 |
|
Housing, Male |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
206420 |
|
Edge Connector Assembly |
00 |
Appelez-nous
|
- |
|
|
|
| 4 |
206599L |
|
Top Cover-almond |
01 |
Appelez-nous
|
- |
|
|
|
| 4 |
214354 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 4 |
206636L |
|
Top Cover Kit-almond----na |
00 |
Appelez-nous
|
- |
|
|
|
| 5 |
215247 |
|
Bumper For Lid |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
211500 |
|
Washer,bracke To Top Cover |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
053759 |
|
Screw, No.6-32 X 3/8 |
00 |
Appelez-nous
|
- |
|
|
|
| 7 |
215274 |
|
Top Cover Restraint |
00 |
Appelez-nous
|
- |
|
|
|
| 8 |
215437 |
|
Clip For Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 9 |
211881 |
|
Grommet, Cord |
00 |
Appelez-nous
|
- |
|
|
|
| 10 |
206424 |
|
Power Cord |
00 |
Appelez-nous
|
- |
|
|
|
| 10 |
Y310376 |
|
Clip, Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 10 |
WP90767 |
 |
Screw (Replaces: Y313559) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 11 |
WP596669 |
 |
Hose Clamp (Replaces: 201575) |
00 |
|
Immediately |
$ 7.56 |
|
|
| 12 |
WP206413 |
 |
Water Valve-dc (Replaces: 206413) |
00 |
|
Immediately |
$ 247.54 |
|
|
| 13 |
WP96160 |
 |
Screen, Valve (Replaces: 214337) |
00 |
|
|
$ 10.54 |
|
|
| 14 |
215264 |
|
Bracket For Water Valve |
00 |
Appelez-nous
|
- |
|
|
|
| 15 |
Y313561 |
|
Screw----na |
00 |
|
|
$ 5.27 |
|
|
| 16 |
WP90767 |
|
Screw (Replaces: 212276) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 17 |
200961 |
|
Screen Washer, Inlet Hose |
00 |
Appelez-nous
|
- |
|
|
|
| 18 |
Y013783 |
|
Gasket, Inlet Hose |
00 |
|
|
$ 18.72 |
|
|
| 18 |
WP76314 |
 |
Inlet Hose Assy. (Replaces: 200672) |
00 |
|
|
$ 38.79 |
|
|
| 19 |
WPW10346892 |
 |
Screw (Replaces: 213121) |
00 |
|
Immediately |
$ 6.47 |
|
|
| 20 |
215278 |
|
Glide For Washer |
00 |
Appelez-nous
|
- |
|
|
|
| 21 |
207207L |
|
Cabinet Alm----na |
11 |
Appelez-nous
|
- |
|
|
|
| 21 |
206411L |
|
Cabinet-almond |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
214743 |
|
Label |
00 |
Appelez-nous
|
- |
|
|
|
| 23 |
WP67006908 |
 |
Screw (Replaces: 215277) |
00 |
|
Immediately |
$ 7.16 |
|
|
| 24 |
215276 |
|
Bushing |
00 |
Appelez-nous
|
- |
|
|
|
| 25 |
310557 |
|
Washer |
00 |
Appelez-nous
|
- |
|
|
|
| 26 |
WP486255 |
 |
Hex. Nut, No.8-32 (Replaces: Y052655) |
00 |
|
|
$ 5.54 |
|
|
| 27 |
214354 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
