01 - Base, Tub Braces, Damper Assy. & Trans.


02 - Blower Housing/thermostats & Lint Screen


03 - Cabinet & Front Panel


04 - Cabinet, Relays & Dryer Stand


05 - Cabinet, Top Cover & Water Valve (rear)


06 - Clutch, Brake & Belts


07 - Dryer Door Assembly


08 - Front Panel & Control Panel


09 - Front View


10 - Inlet Duct & Heater Assembly (se1000)


11 - Inlet Duct & Heater Assembly (sg1000)


12 - Inner/outer Tub,agitator & Wtr Levl Swth


13 - Lid Lock Assembly


14 - Motor & Idler Assembly


15 - Motor & Pump Assembly


16 - Transmission


17 - Transmission-orbital


18 - Tub Cover, Water Valve & Water Inj. Assy


19 - Tumbler (front & Back)


20 - Washer Top Cover Assembly

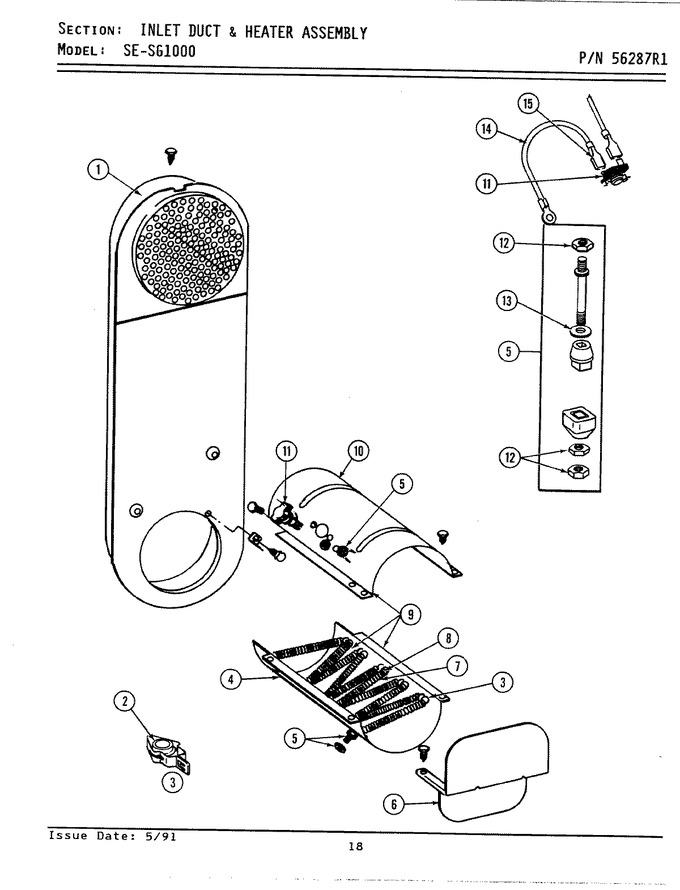

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
2	Y313270		Insulator For Heater Elemen	00			$ 5.85
3	WPY303881		Clip And Insulator Assembly   (Replaces: Y303881)	00		Immediately	$ 19.79
4	314501		Heater Enclosure-bottom	00	Appelez-nous	-
4	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
5	Y304596		Terminal Insulator Assembly	00		Immediately	$ 22.97
6	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
6	314504		Radiant Shield	00	Appelez-nous	-
7	314503		Heater Coil 240 Volt	00			$ 69.33
8	306378		Heating Element Kit - 208v	00	Appelez-nous	-
9	Y306111		Heater Assembly Complete	00			$ 196.50
9	Y306379		Heater Assm. Complete - 208	00	Appelez-nous	-
10	314502		Heater Enclosure-top	00		Immediately	$ 270.99
11	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
11	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)	00		Immediately	$ 44.02
11	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)	00		Immediately	$ 66.12
12	WP112432		Nut, Terminal Block   (Replaces: 311484)	00			$ 7.16
