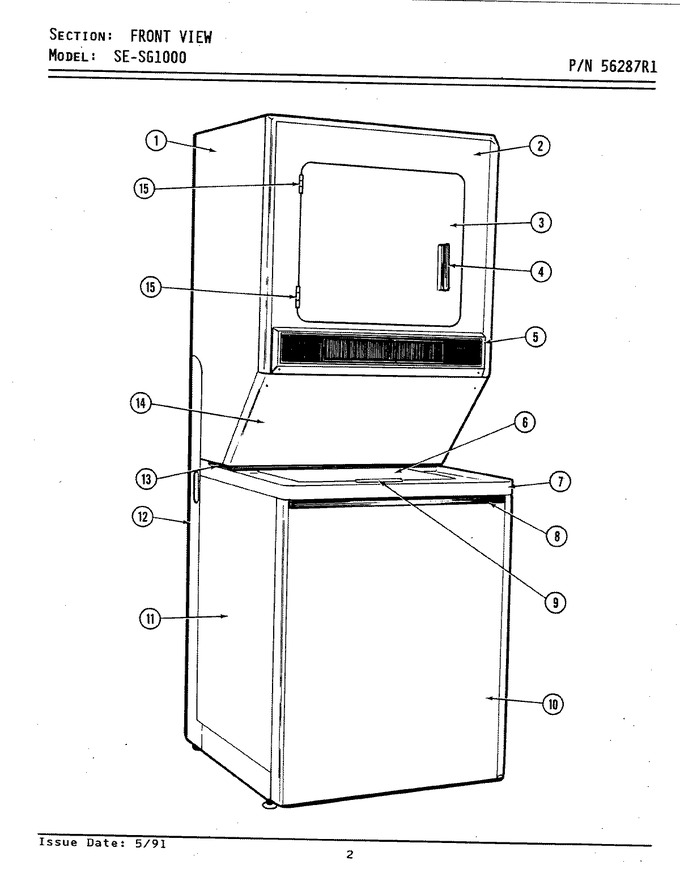

09 - Front View


10 - Inlet Duct & Heater Assembly (se1000)


11 - Inlet Duct & Heater Assembly (sg1000)


12 - Inner/outer Tub,agitator & Wtr Levl Swth


13 - Lid Lock Assembly


14 - Motor & Idler Assembly


15 - Motor & Pump Assembly


16 - Transmission


17 - Transmission-orbital


18 - Tub Cover, Water Valve & Water Inj. Assy


19 - Tumbler (front & Back)


20 - Washer Top Cover Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	306641L		Cabinet, Almond	00	Appelez-nous	-
2	314474L		Front Panel-almond	00	Appelez-nous	-
3	314475L		Panel, Outer Door (alm)	00	Appelez-nous	-
4	314476		Handle,door	00	Appelez-nous	-
5	210932		Screw, No.8 X 9/16 Ctsk	00	Appelez-nous	-
5	306388		Control Panel	00	Appelez-nous	-
6	215251L		Lid-almond----na	00	Appelez-nous	-
7	206599L		Top Cover-almond	01	Appelez-nous	-
7	206636L		Top Cover Kit-almond----na	00	Appelez-nous	-
8	215266		Trim, Front Panel	00	Appelez-nous	-
9	206667		Handle With Nuts	00	Appelez-nous	-
10	207205L		Panel, Front (alm)----na	11	Appelez-nous	-
10	206550L		Front Panel-almond----na	00	Appelez-nous	-
11	207207L		Cabinet Alm----na	11	Appelez-nous	-
11	206411L		Cabinet-almond	00	Appelez-nous	-
12	306110L		Stand,dryer(complete)(alm)	00	Appelez-nous	-
13	215245L		Bridge For Top Cover Almond	00	Appelez-nous	-
14	306072L		Access Panel-almond----na	00	Appelez-nous	-
15	Y304577		Door Hinge	00	Appelez-nous	-
