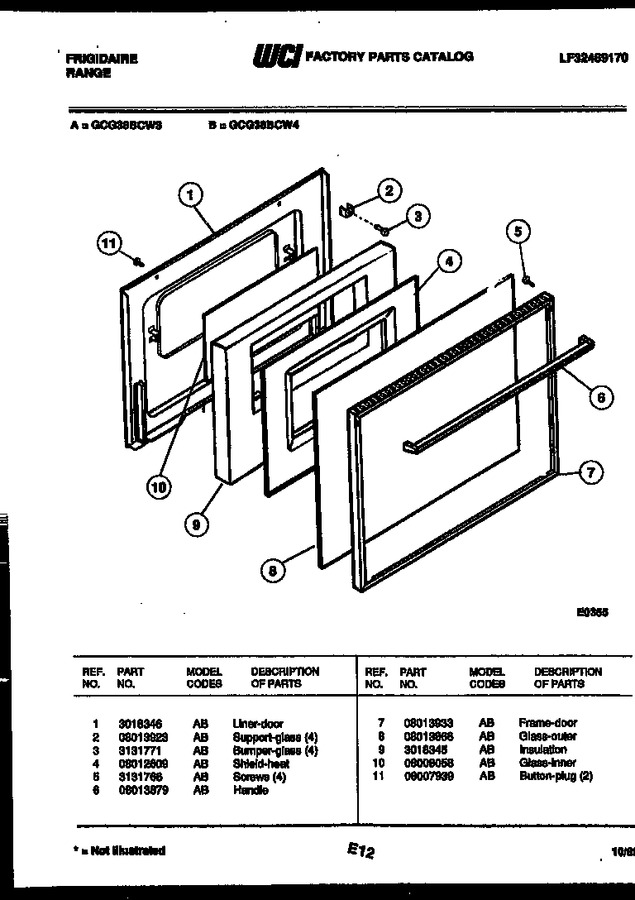

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018346 | Liner - Door |
|
- | |||||
| 2 | 08013923 | Support-glass (4) |
|
- | |||||
| 3 | 3131771 | Bumper-glass (4) |
|
- | |||||
| 4 | 08012609 | Shield-heat |
|
- | |||||
| 5 | 3131766 | Screws (4) |
|
- | |||||
| 6 | 08013879 | Handle |
|
- | |||||
| 7 | 08013933 | Frame-door |
|
- | |||||
| 8 | 08013866 | Glass-outer |
|
- | |||||
| 9 | 3018345 | Insulation |
|
- | |||||
| 10 | 08008058 | Glass-inner |
|
- | |||||
| 11 | 08007939 | Button-plug (2) |
|
- |
