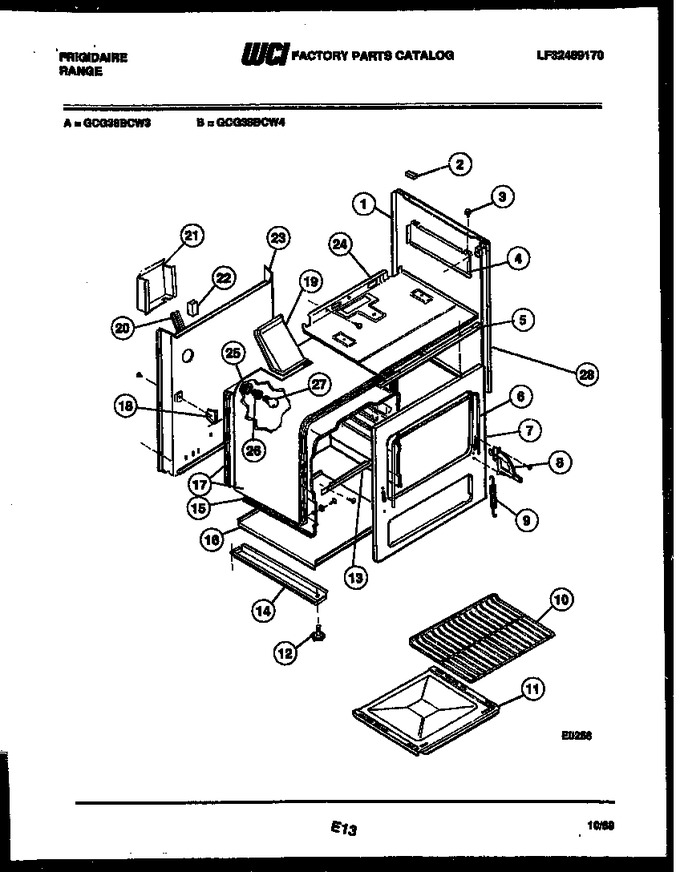

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Panel-bodyside (white) (2)		Appelez-nous	-
2	3016129		Grommet-rear		Appelez-nous	-
3	3051063		Grommet-front		Appelez-nous	-
4	3131053		Shield-burner Box Rh		Appelez-nous	-
5	3131811		Support-control Panel		Appelez-nous	-
6	08008022		Seal-oven Door		Appelez-nous	-
7	3017790		Frame - Front		Appelez-nous	-
8	3204670		Hinge-oven Door Rh		Appelez-nous	-
9	08008028		Spring-door (2)		Appelez-nous	-
10	3015714		Shelf-rack (2)		Appelez-nous	-
11	3018282		Liner-oven-bottom		Appelez-nous	-
12	3051080		Screw-leveler (4)		Appelez-nous	-
13	3131038		Support-oven Bottom		Appelez-nous	-
14	08068047		Base Rail (2)		Appelez-nous	-
15	3018709		Liner-side Rh		Appelez-nous	-
16	3011645		Bottom-oven		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3051096		Support,oven Rear		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	3131046		Channel - Wire		Appelez-nous	-
21	08013953		Cover-spark Module		Appelez-nous	-
22	3200669		Spark Module		Appelez-nous	-
23	3013340		Main Back		Appelez-nous	-
24	3017174		Burner Box Bottom		Appelez-nous	-
25	3051511		Cup, Oven Light				$ 60.22
26	3009410		Receptacle-oven Light		Appelez-nous	-
27	3051082		Bulb-oven Light		Appelez-nous	-
28	08014088		Trim-body Side (2)		Appelez-nous	-
15A	3018710		Liner-side Lh		Appelez-nous	-
15B	3018711		Liner-top		Appelez-nous	-
15C	3018712		Liner-back		Appelez-nous	-
17A	3017172		Insulation - Back		Appelez-nous	-
4A	3131054		Shield-burner Box Lh		Appelez-nous	-
8A	3204672		Hinge-oven Door Lh		Appelez-nous	-
