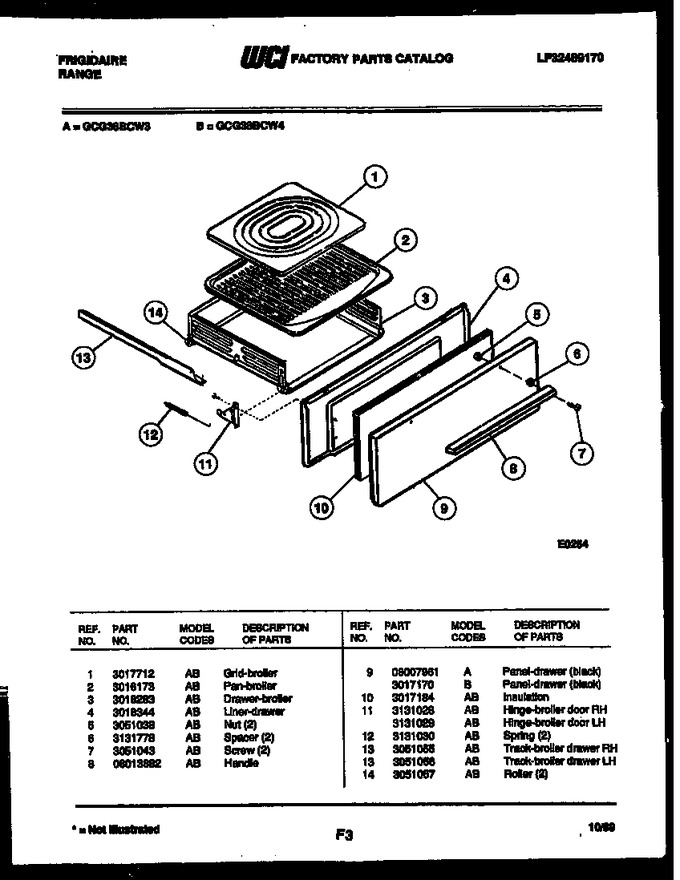

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Body Parts
06 - Burner, Manifold And Gas Control
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017712 | Grid-broiler |
|
- | |||||
| 2 | 3016173 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 3018344 | Liner-drawer |
|
- | |||||
| 5 | 3051038 | Nut (2) |
|
- | |||||
| 6 | 3131778 | Spacer (2) |
|
- | |||||
| 7 | 3051043 | Screw (2) |
|
- | |||||
| 8 | 08013882 | Handle |
|
- | |||||
| 9 | 08007961 | Panel-drawer (black) |
|
- | |||||
| 10 | 3017184 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge-broiler Door Rh |
|
- | |||||
| 12 | 3131030 | Spring (2) |
|
- | |||||
| 13 | 3051055 | Track-broiler Drawer Rh |
|
- | |||||
| 13 | 3051056 | Track-broiler Drawer Lh |
|
- | |||||
| 14 | 3051057 | Roller (2) |
|
- | |||||
| 11A | 3131029 | Hinge-broiler Door Lh |
|
- |
