| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
213053 |
|
Brace, Tub |
A5 |
Appelez-nous
|
- |
|
|
|
| 2 |
206707 |
|
Transmission, Orbital |
A5 |
Appelez-nous
|
- |
|
|
|
| 3 |
1N4004 |
|
Damper W/bolt & Clip (Replaces: 203725) |
A5 |
Appelez-nous
|
- |
|
|
|
| 4 |
211028 |
|
Deflector,water (drive Tube) |
A5 |
Appelez-nous
|
- |
|
|
|
| 5 |
203956 |
 |
Damper Pad Kit (w/poly Lube) |
A5 |
|
Immediately |
$ 47.33 |
|
|
| 6 |
WP210385 |
 |
Nut, Lock (Replaces: 210385) |
A5 |
|
|
$ 6.26 |
|
|
| 7 |
22003428 |
 |
Leg, Adjustable (w/nut) (Replaces: Y302699) |
A5 |
|
Immediately |
$ 14.41 |
|
|
| 8 |
WP210684 |
 |
Foot, Rubber (Replaces: 210684) |
A5 |
|
Immediately |
$ 14.09 |
|
|
| 9 |
203274 |
|
Base With Damper Pads |
A5 |
Appelez-nous
|
- |
|
|
|
| 10 |
204807 |
|
Grnd.wire,supp.plte To Top Cvr |
A5 |
Appelez-nous
|
- |
|
|
|
| 11 |
WP489128 |
 |
Screw, Ground Wire To Base--na (Replaces: 210186) |
A5 |
|
|
$ 9.79 |
|
|
| 12 |
WP211949 |
 |
Nut, Eyebolt (Replaces: 211949) |
A5 |
|
|
$ 6.88 |
|
|
| 13 |
W11129403 |
 |
Eye Bolt For Center Spring (Replaces: 213120) |
A5 |
|
|
$ 12.23 |
|
|
| 14 |
Y015627 |
|
Screw, Hex Hd Cap 5/16 X 5/8 |
A5 |
|
|
$ 8.15 |
|
|
| 15 |
911852 |
|
Washer, Lock (brace) |
A5 |
Appelez-nous
|
- |
|
|
|
| 16 |
213054 |
|
Centering Spring - 3 Used |
A5 |
Appelez-nous
|
- |
|
|
|
| 17 |
213073 |
|
Washer, Double |
A5 |
Appelez-nous
|
- |
|
|
|
| 18 |
Y052785 |
|
Nut,brace To Damper |
A5 |
Appelez-nous
|
- |
|
|
|
| 19 |
Y052734 |
|
Nut |
A5 |
Appelez-nous
|
- |
|
|
|
| 20 |
Y054867 |
|
Washer, Lock |
A5 |
Appelez-nous
|
- |
|
|
|
| 21 |
212979 |
 |
Washer, Tub Brace |
A5 |
|
|
$ 91.61 |
|
|
| 22 |
211100 |
|
Washer, Cushion |
A5 |
Appelez-nous
|
- |
|
|
|
| 23 |
W10175938 |
 |
Bolt & Gasket Assembly (long) (Replaces: 205254) |
A5 |
|
Immediately |
$ 7.00 |
|
|
| 23 |
W10175939 |
 |
Bolt & Gasket Assy.(short) (Replaces: 200744) |
A5 |
|
|
$ 7.79 |
|
|

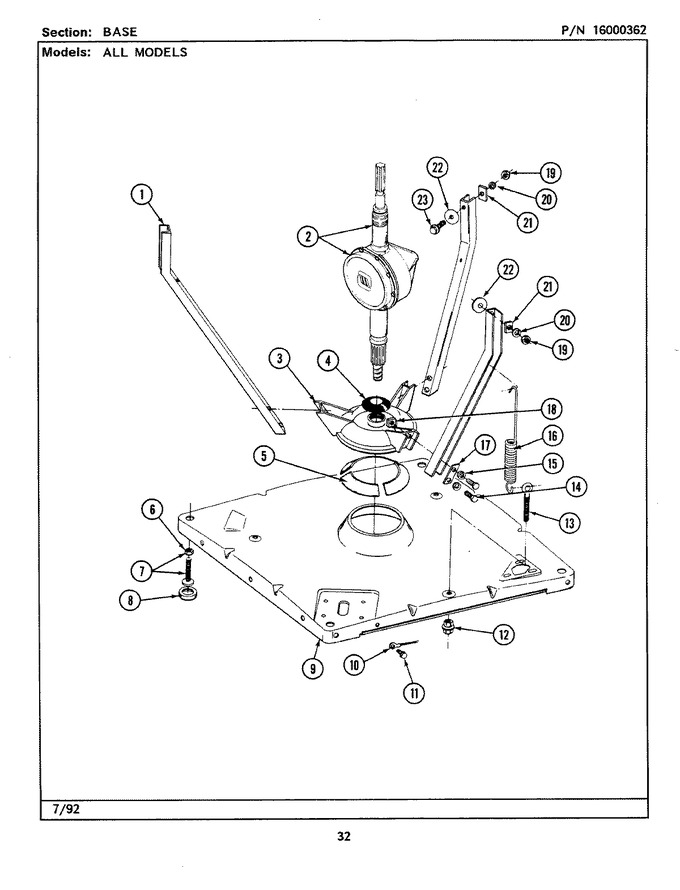

View Diagram in Separate Window
Print Part List
