| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |

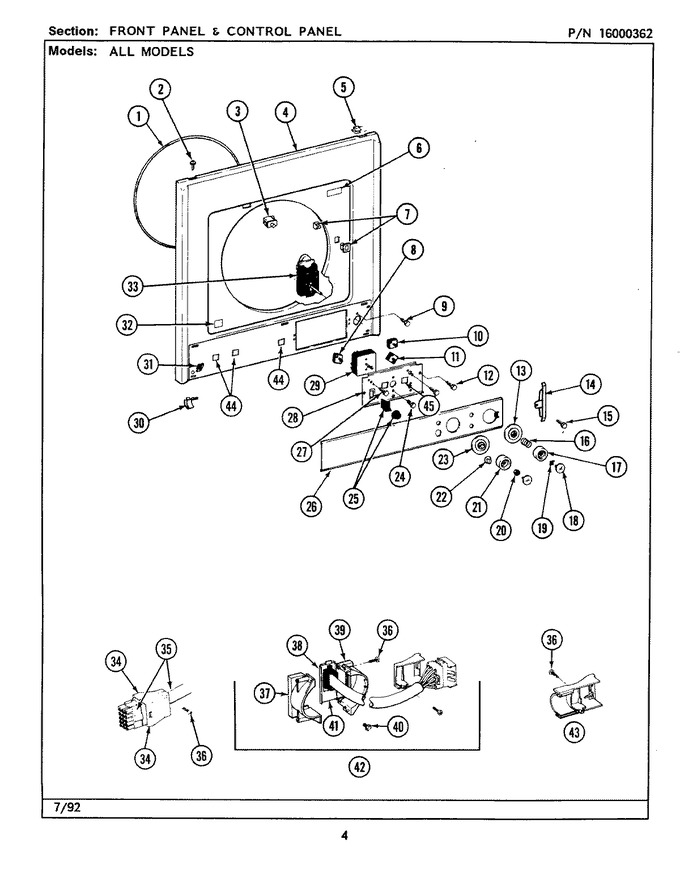

| 1 |
314286 |
 |
Seal For Front Panel |
A5 |
|
|
$ 90.56 |
|
|
| 2 |
WP1163283 |
|
Screw, No.8 X 1/2 Inch (Replaces: 212277) |
A5 |
|
|
$ 6.47 |
|
|
| 3 |
W10169313 |
 |
Switch, Door (Replaces: Y305753) |
A5 |
|
Immediately |
$ 29.18 |
|
|
| 4 |
315261 |
|
Front Panel (white) |
A5 |
Appelez-nous
|
- |
|
|
|
| 5 |
Y310376 |
|
Clip, Wire Harness |
A5 |
Appelez-nous
|
- |
|
|
|
| 6 |
Y313927 |
|
Instruction Label |
A5 |
Appelez-nous
|
- |
|
|
|
| 7 |
306436 |
 |
Door Latch Kit |
A5 |
|
Immediately |
$ 10.17 |
|
|
| 8 |
308017 |
|
Switch, Dryer Temperature |
A5 |
Appelez-nous
|
- |
|
|
|
| 9 |
WP3400014 |
|
Screw-timer To Control Pane (Replaces: 213966) |
A5 |
|
|
$ 6.98 |
|
|
| 10 |
207782 |
|
Switch, Water Temperature |
A5 |
Appelez-nous
|
- |
|
|
|
| 11 |
207800 |
|
Switch, Water Level |
A5 |
Appelez-nous
|
- |
|
|
|
| 12 |
WP90767 |
 |
Screw (Replaces: 211294) |
A5 |
|
Immediately |
$ 7.04 |
|
|
| 13 |
208085 |
|
Timer, Dial |
A5 |
Appelez-nous
|
- |
|
|
|
| 14 |
315423 |
|
End Cap,control Panel (wht) |
A5 |
Appelez-nous
|
- |
|
|
|
| 15 |
WP8281227 |
 |
Screw,hex Head (brake Drum) (Replaces: 211000) |
A5 |
|
|
$ 9.40 |
|
|
| 16 |
211065 |
|
Spring, Timer Knob |
A5 |
|
|
$ 5.70 |
|
|
| 17 |
216055 |
|
Control Knob |
A5 |
Appelez-nous
|
- |
|
|
|
| 18 |
216057 |
|
Cap, Knob |
A5 |
Appelez-nous
|
- |
|
|
|
| 19 |
211605 |
|
Retainer, Timer Knob |
A5 |
Appelez-nous
|
- |
|
|
|
| 20 |
W10155650 |
 |
Nut (Replaces: 312273) |
A5 |
|
|
$ 12.03 |
|
|
| 21 |
315422 |
|
Knob |
A5 |
Appelez-nous
|
- |
|
|
|
| 22 |
WP22001663 |
 |
Knob, Selector Switch (wht) (Replaces: Y308453) |
A5 |
|
Immediately |
$ 53.16 |
|
|
| 23 |
308451 |
|
Timer Dial Dryer |
A5 |
Appelez-nous
|
- |
|
|
|
| 24 |
WP488234 |
 |
Screw, Switches (Replaces: 315317) |
A5 |
|
|
$ 6.07 |
|
|
| 25 |
Y308449 |
|
Push To Start Switch W/button |
A5 |
Appelez-nous
|
- |
|
|
|
| 26 |
WP3149401 |
 |
Facia Es7800 (Replaces: 308454) |
A5 |
|
|
$ 134.65 |
|
|
| 27 |
215952 |
|
Screw |
A5 |
Appelez-nous
|
- |
|
|
|
| 28 |
315237 |
|
Bracket For Switches & Timer |
A5 |
Appelez-nous
|
- |
|
|
|
| 29 |
308252CP |
|
Timer (Replaces: Y308252) |
A5 |
Appelez-nous
|
- |
|
|
|
| 30 |
314482 |
|
Fastener, Spring |
A5 |
Appelez-nous
|
- |
|
|
|
| 31 |
488660 |
|
Nut (Replaces: 314748) |
A5 |
Appelez-nous
|
- |
|
|
|
| 32 |
314486 |
|
Label |
A5 |
Appelez-nous
|
- |
|
|
|
| 33 |
207783 |
|
Timer |
A5 |
|
|
$ 210.43 |
|
|
| 34 |
215960 |
|
Strain Relief |
A5 |
Appelez-nous
|
- |
|
|
|
| 35 |
208213 |
|
Wire Harness |
A5 |
Appelez-nous
|
- |
|
|
|
| 36 |
215953 |
|
Screw |
A5 |
Appelez-nous
|
- |
|
|
|
| 38 |
215948 |
|
Grommet |
A5 |
Appelez-nous
|
- |
|
|
|
| 40 |
WPW10139210 |
|
Screw, No.8 X 5/16 Inch (Replaces: 211168) |
A5 |
|
|
$ 6.75 |
|
|
| 41 |
216008 |
|
Bracket Gromment |
A5 |
Appelez-nous
|
- |
|
|
|
| 44 |
315286 |
|
Bumper Large |
A5 |
Appelez-nous
|
- |
|
|
|
| 45 |
315287 |
|
Bumper Small |
A5 |
Appelez-nous
|
- |
|
|
|
