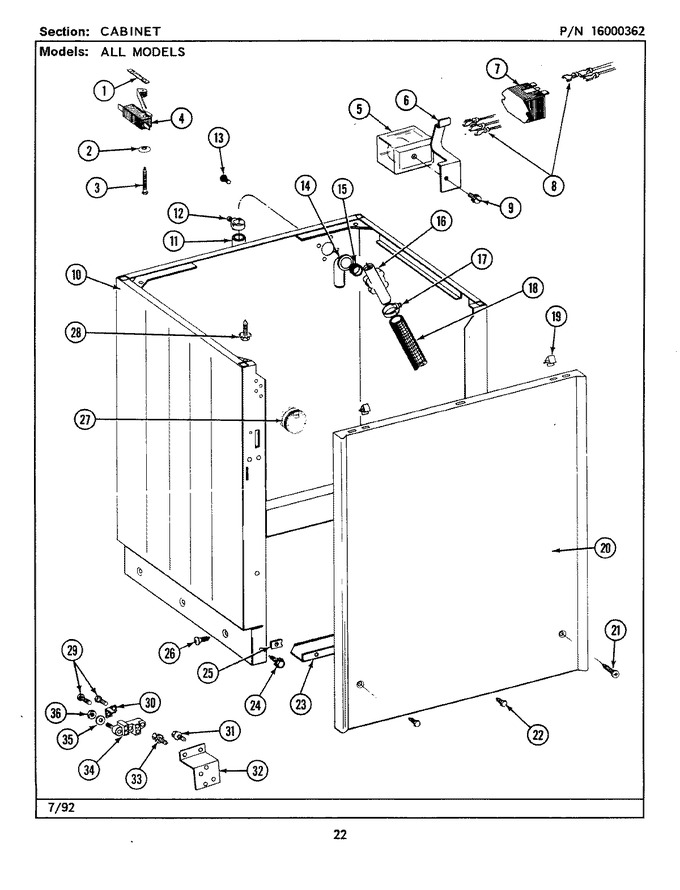

LSG7800AAE | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	210866	Twin Speed Nut	A5	Appelez-nous	-
2	211500	Washer,bracke To Top Cover	A5	Appelez-nous	-
3	213501	Screw, No.6-20 X 1-1/8 Inch	A5			$ 12.03
4	202476	Unbalance Switch	A5	Appelez-nous	-
5	207797	Relay	A5	Appelez-nous	-
6	215273	Spring Clip	A5	Appelez-nous	-
7	WP8566493	Relay, Run (Replaces: 207834)	A5			$ 81.32
8	208213	Wire Harness	A5	Appelez-nous	-
9	212949	Screw	A5	Appelez-nous	-
10	207207	Cabinet Wht	A5	Appelez-nous	-
11	Y059149	(7/8`` I.d. Carton Of 50 Ft.)	A5	Appelez-nous	-
12	WP285655	Hose Clamp - 1-1/2 Inch (Replaces: 200908)	A5		Immediately	$ 7.55
13	WPY014874	Screw (Replaces: Y014874)	A5			$ 6.98
14	WPW10116738	Elbow, Siphon Break (Replaces: Y216016)	A5		Immediately	$ 29.49
15	WP214765	Gasket, Siphon Break (Replaces: 214765)	A5			$ 73.22
16	206638	Siphon Break(w/clamp)	A5		Immediately	$ 73.56
17	WP3367052	Clamp, Hose (Replaces: 202574)	A5			$ 7.49
18	WP22001448	Hose (Replaces: 215365)	A5			$ 79.87
19	215711	Fastener, Spring	A5	Appelez-nous	-
20	207205	Panel, Front (wht)	A5	Appelez-nous	-
21	213123	Screw, No.10 X 7/8 Inch----sub	A5	Appelez-nous	-
22	WP90767	Screw (Replaces: 211294)	A5		Immediately	$ 7.04
23	213846	Guard, Belt	A5	Appelez-nous	-
24	WP27001200	Screw,cbnt.to Frnt Of Base--na (Replaces: 213122)	A5			$ 6.91
25	213280	Front Panel Bracket/fastener	A5	Appelez-nous	-
26	213007	Screw, Cabinet	A5			$ 10.99
27	207787	Switch, Water Level (pressure)	A5	Appelez-nous	-
28	214354	Screw	A5	Appelez-nous	-
