SELECT A DIAGRAM

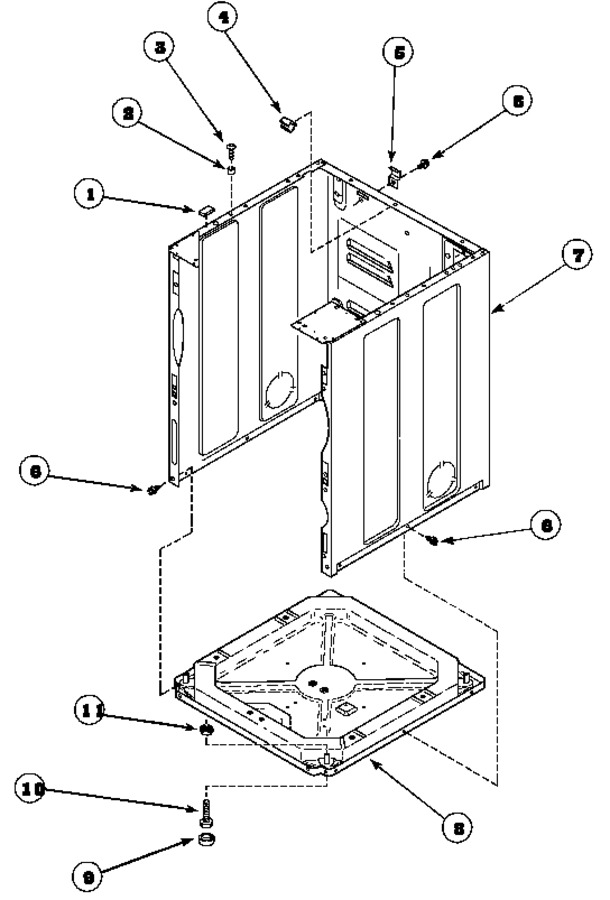

01 - Cabinet And Base


02 - Cabinet Top And Control Hood Rear Panel


03 - Dispenser Assy


04 - Drain Hose And Pump


05 - Front Panel, Door Assy And Door Seal


06 - Graphic Panel, Ctrl Mtg Plate And Ctrls


07 - Inlet Hose, Mixing Valve & Disp Hose


08 - Inner Basket/trunnion/brg Hsg & Pully


09 - Motor And Belt


10 - Outertub, Front And Clamp Ring


11 - Power Cord And Terminals


12 - Shipping Materials


13 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	36985		Clip, Hose		Appelez-nous	-
5	D510136		Hinge, Top   (Replaces: 500003)				$ 6.95
6	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
7	Y685300		Cabinet		Appelez-nous	-
8	Y685303		Base,front Load		Appelez-nous	-
9	70282		Foot,rubber		Appelez-nous	-
10	685800		Leg,leveling 3/8 Unc		Appelez-nous	-
11	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85
