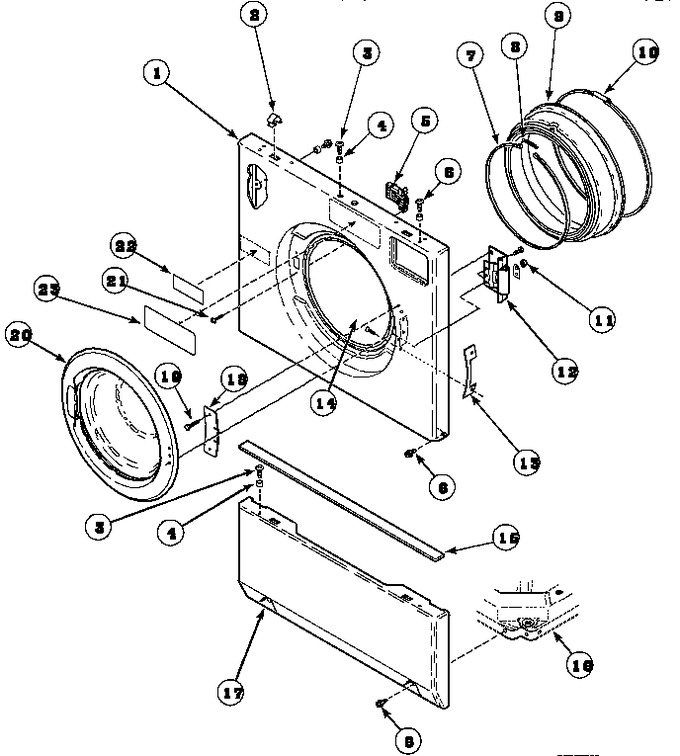

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	685306		Front Panel		Appelez-nous	-
2	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 7.34
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	56079		Locater, Panel			Immediately	$ 6.95
5	685407		Assy,door Latch/swit		Appelez-nous	-
6	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
7	Y685427		Ring,wire Clamp		Appelez-nous	-
8	Y685428		Spring,extension		Appelez-nous	-
9	3391834		Seal,door   (Replaces: 685426)				$ 319.29
10	685509		Seal Cable Tie		Appelez-nous	-
11	685846		Locknut,no.10-32 Unf-nylon				$ 6.95
12	685019		Assy, Door Hinge		Appelez-nous	-
13	685423		Bracket,hinge Stop		Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 685843)			Immediately	$ 6.85
15	685366		Tape,foam		Appelez-nous	-
16	Y685303		Base,front Load		Appelez-nous	-
17	503648		Panel, Lower Access		Appelez-nous	-
18	685421		Plate,hinge		Appelez-nous	-
19	Y685836		Screw,no.10-32 Unfx1.00		Appelez-nous	-
20	Y685012		Door Assembly		Appelez-nous	-
21	685829		Screw,no.8-16x5/8 Plastite 48-2		Appelez-nous	-
22	685921		Label,door Locked		Appelez-nous	-
23	685923		Label,dispenser		Appelez-nous	-
