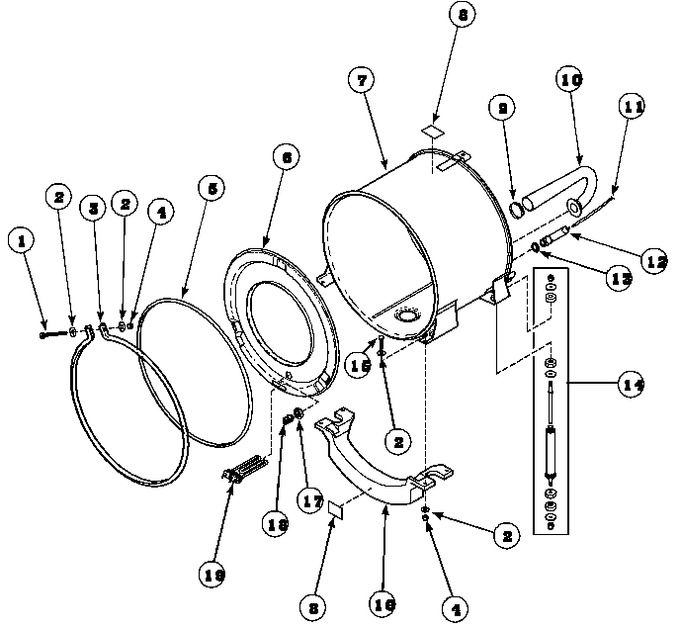

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 685842 | Screw,3/8-16uncx4 Full Thread |
|
- | |||||
| 2 | 685812 | Washer,flat 3/8 Thick |
|
- | |||||
| 3 | 685120 | Ring, Clamp |
|
- | |||||
| 4 | 685845 | Locknut,3/8-16 Unc Black Oxide |
|
- | |||||
| 5 | 685123 | Seal,outer Tub Front |
|
- | |||||
| 6 | 685121 | Front,outer Tub |
|
- | |||||
| 7 | 685002 | Assy, Outer Tub |
|
- | |||||
| 8 | 500049 | Sticker |
|
- | |||||
| 8 | 500314 | Label, Warning |
|
- | |||||
| 9 | 685725 | Clamp, Hose 2.0 Diam |
|
$ 4.21 | |||||
| 10 | 685701 | Hose, Detergent |
|
- | |||||
| 11 | 29214 | Tubing,48 |
|
- | |||||
| 12 | COMM PART | Pressure Bulb (Replaces: 30907) |
|
- | |||||
| 13 | 29175 | Grommet |
|
$ 8.56 | |||||
| 14 | 685604 | Assy,shock Absorber |
|
- | |||||
| 15 | 685841 | Screw,hhcs 3/8-16unc X1.25gr5 |
|
- | |||||
| 16 | 685608 | Weight,ballast |
|
- | |||||
| 17 | 685546 | Grommet,thermostat |
|
- | |||||
| 18 | 685573 | Thermostat |
|
- | |||||
| 19 | 685500 | Element,heating W/gs |
|
- |
