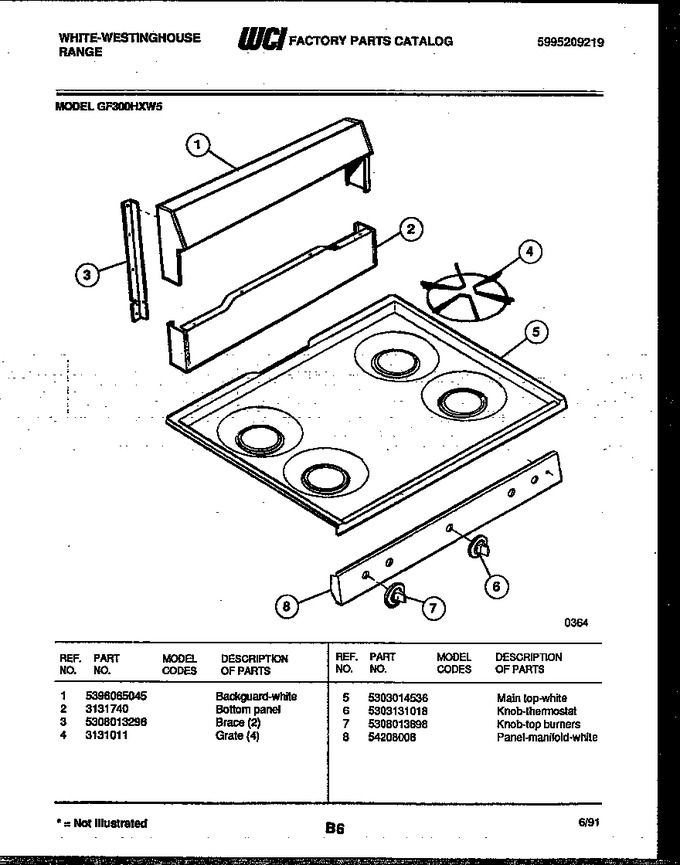

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5396065045 | Backguard-white |
|
- | |||||
| 2 | 3131740 | Bottom Panel |
|
- | |||||
| 3 | 5308013296 | Brace (2) |
|
- | |||||
| 4 | 3131011 | Grate (4) |
|
- | |||||
| 5 | 5303014536 | Main-top (white) |
|
- | |||||
| 6 | 5303131018 | Knob-thermostat |
|
$ 40.95 | |||||
| 7 | 5308013898 | Knob-top Burners |
|
$ 69.30 | |||||
| 8 | 54208008 | Panel-manifold White |
|
- |
