View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts

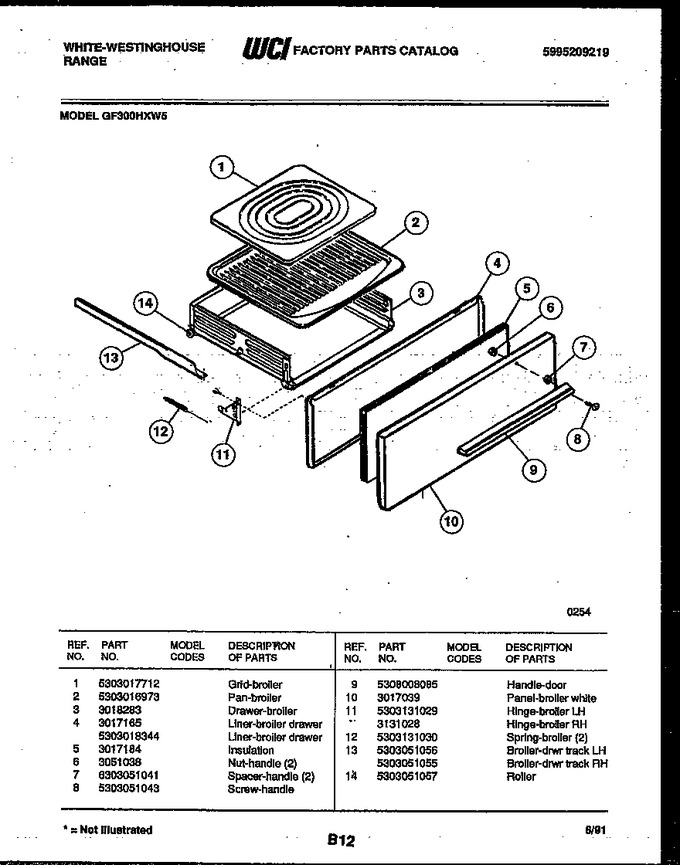

06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017712 | Grid-broiler |
|
- | |||||
| 2 | 5303016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 5303018344 | Liner-broiler Drawer |
|
- | |||||
| 4 | 3017165 | Liner-broiler Drawer |
|
- | |||||
| 5 | 3017184 | Insulation |
|
- | |||||
| 6 | 3051038 | Nut-handle (2) |
|
- | |||||
| 7 | 6303051041 | Spacer-handle (2) |
|
- | |||||
| 8 | 5303051043 | Screw-handle |
|
- | |||||
| 9 | 5308008085 | Handle-door |
|
- | |||||
| 10 | 3017039 | Panel-broiler White |
|
- | |||||
| 11 | 5303131029 | Hinge-broiler (lh) |
|
- | |||||
| 12 | 5303131030 | Spring Broiler (2) |
|
- | |||||
| 13 | 5303051056 | Broiler Drwr-track Lh |
|
$ 78.44 | |||||
| 14 | 5303051057 | Roller |
|
- | |||||
| 11A | 3131028 | Hinge-broiler (rh) |
|
- | |||||
| 13A | 5303051055 | Broiler Drwr-track Rh |
|
$ 56.60 |
