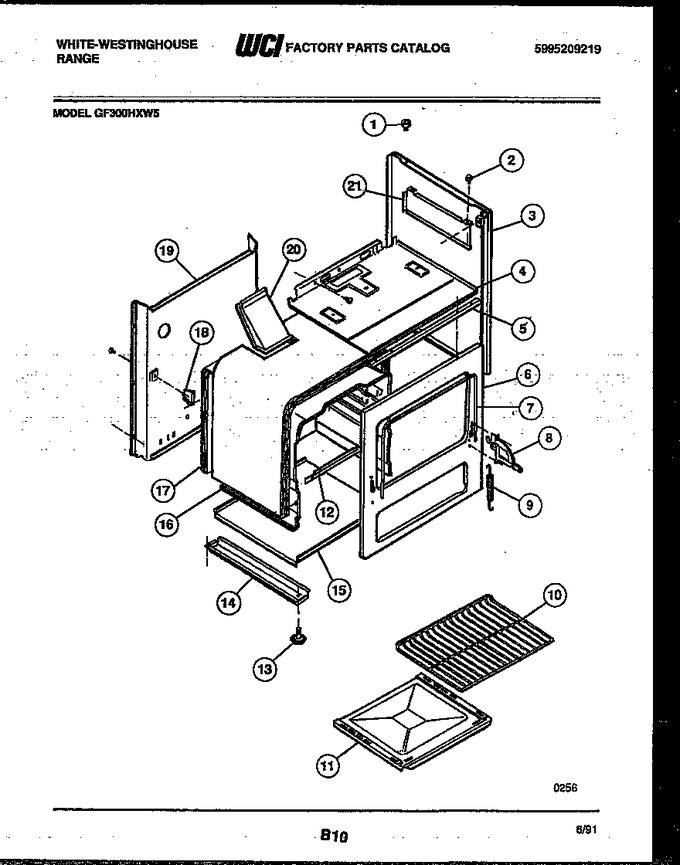

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet |
|
- | |||||
| 2 | 3051063 | Grommet-main Top |
|
- | |||||
| 3 | 5303051061 | Panel-body Side (white) |
|
- | |||||
| 4 | 3017174 | Burner Box Bottom |
|
- | |||||
| 5 | 3131811 | Support Control Pnl |
|
- | |||||
| 6 | 3205578 | Front - Frame |
|
- | |||||
| 7 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 8 | 5303204670 | Hinge-oven Dr-rh |
|
- | |||||
| 9 | 5303009435 | Spring Oven Door (2) |
|
- | |||||
| 10 | 5303015714 | Rack-oven |
|
- | |||||
| 11 | 3018282 | Liner-bottom |
|
- | |||||
| 12 | 3131038 | Support-oven Btm |
|
- | |||||
| 13 | 318175510 | Leg Leveler (4) (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 14 | 5303210256 | Base Rail (left) |
|
- | |||||
| 15 | 3011645 | Main Bottom |
|
- | |||||
| 16 | 3018284 | Liner-right Side |
|
- | |||||
| 17 | 3017171 | Insulation - Wrap |
|
- | |||||
| 18 | 3051096 | Support,oven Rear |
|
- | |||||
| 19 | 5303013340 | Main Back |
|
- | |||||
| 20 | 3017173 | Flue Box |
|
- | |||||
| 21 | 5303131053 | Shield-brnr Box-rh |
|
- | |||||
| *48538 | 3131791 | Clip B/s Coner |
|
$ 19.01 | |||||
| *48538 | 3934059 | Anti-tip Kit |
|
- | |||||
| *48538 | 08008009 | Bushing,snap |
|
- | |||||
| 14A | 5303210255 | Base Rail (right) |
|
- | |||||
| 16A | 3018285 | Liner-left Side |
|
- | |||||
| 16B | 3018347 | Liner - Top |
|
- | |||||
| 16C | 3018995 | Liner - Back |
|
- | |||||
| 17A | 3017172 | Insulation - Back |
|
- | |||||
| 21A | 5303131054 | Shield-brnr Box-lh |
|
- | |||||
| 8A | 5303204672 | Hinge-oven Dr Lh |
|
- |
