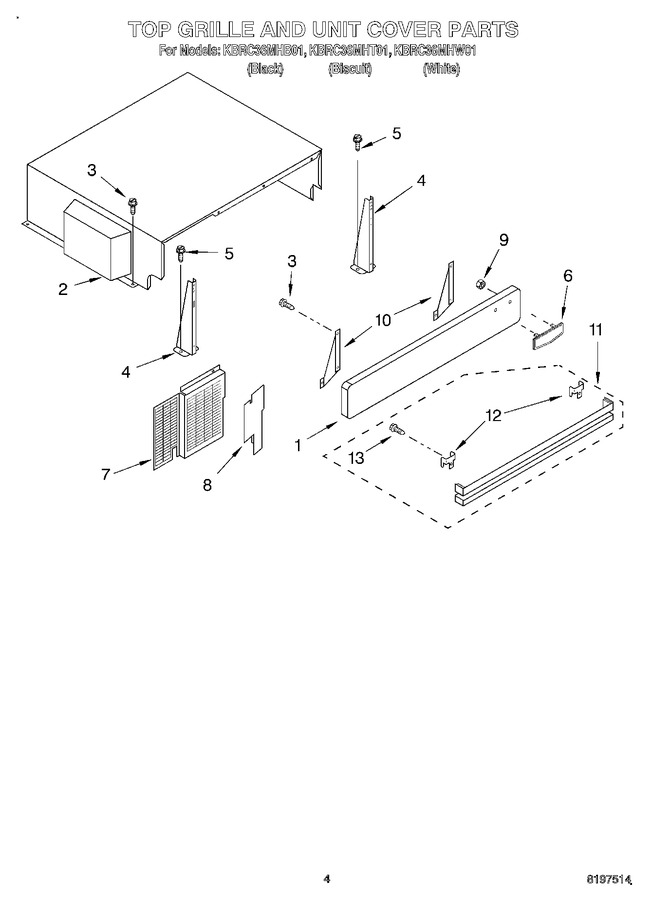

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2209098T | Top Grille Assembly (biscuit) |
|
- | |||||
| 1 | 2209098W | Top Grille Assembly (white) |
|
- | |||||
| 1 | 2209098B | Top Grille Assembly (black) |
|
- | |||||
| 2 | 2005549 | Cover, Unit |
|
- | |||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 4 | 2002484 | Grille, Bracket |
|
- | |||||
| 5 | WP8204624 | Screw (Replaces: 2001415) |
|
$ 14.99 | |||||
| 6 | 2005292 | Nameplate (black) |
|
$ 52.20 | |||||
| 6 | 2209118T | Nameplate (biscuit) |
|
- | |||||
| 6 | 2209118W | Nameplate (white) |
|
- | |||||
| 7 | 2005534 | Guard, Compressor Wiring |
|
- | |||||
| 8 | 2006445 | Baffle-air, Condenser |
|
- | |||||
| 9 | WP2004333 | Nut (Replaces: 2004333) |
|
$ 9.63 | |||||
| 10 | 2005485 | Bracket, Trim Panel |
|
- | |||||
| 11 | 2006190 | Louver, Vent (black) |
|
- | |||||
| 11 | 2006189 | Louver, Vent (white) |
|
- | |||||
| 11 | 2006191 | Louver, Vent (biscuit) |
|
- | |||||
| 12 | 2005483 | Louver, Bracket |
|
- | |||||
| 13 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 |
