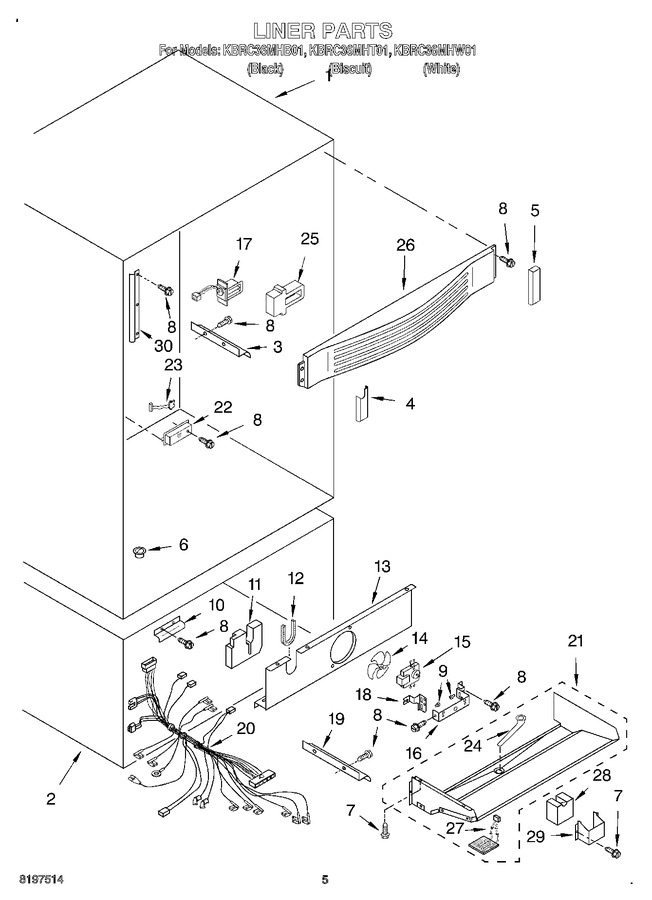

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	2005775		Wiring Channel Side		Appelez-nous	-
4	2005932		Diffuser Cap, Left Side		Appelez-nous	-
5	2005931		Diffuser Cap, Right Side		Appelez-nous	-
6	2171846		Release Valve				$ 18.99
7	WP488729		Screw, 8-15 X .500   (Replaces: 487539)			Immediately	$ 7.01
8	W11624204		Screw   (Replaces: 486194)				$ 12.62
9	548268		Grommet		Appelez-nous	-
10	2006148		Wiring Channel, Freezer Rear		Appelez-nous	-
11	2204505		Foam, Fan Shroud		Appelez-nous	-
12	2207430		Grommet, Flexible		Appelez-nous	-
13	2204506		Shroud, Evaporator Fan		Appelez-nous	-
14	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
15	WP4389155		Motor, Fan   (Replaces: 2003200)			Immediately	$ 226.18
16	938224		Bracket (single)		Appelez-nous	-
17	2005584		Air Baffle Assembly		Appelez-nous	-
18	548263		Bracket (double)		Appelez-nous	-
19	2006147		Wiring Channel Freezer, Side		Appelez-nous	-
20	2207481		Wiring Harness, Freezer		Appelez-nous	-
21	2204504		Cover, Evaporator Assembly		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	1116959		Thermistor				$ 50.88
24	2204514		Drain Tube, Condesate		Appelez-nous	-
25	2005117		Insulation, Baffle		Appelez-nous	-
26	2005422		Cover, Air Diffuser		Appelez-nous	-
27	2204595		Heater-tube, Drain				$ 22.21
28	2204538		Insulation, Tube Drain		Appelez-nous	-
29	2204537		Cover, Tube Drain		Appelez-nous	-
30	2006476		Guard, Capillary Tube		Appelez-nous	-
