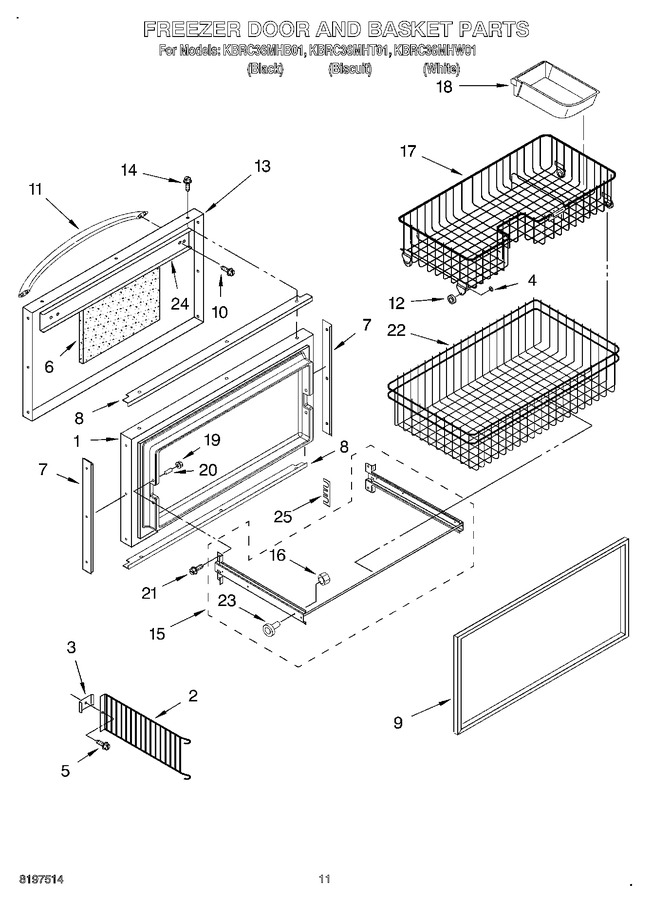

07 - Freezer Door And Basket


08 - Refrigerator Door


09 - Upper Unit


10 - Lower Unit And Tube


11 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207525		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525		Divider, Basket		Appelez-nous	-
3	2207429		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 12.03
5	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
6	2005400		Foam, Filler		Appelez-nous	-
7	2006139		Spacer, Door Edge Side		Appelez-nous	-
8	2006138		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	2188411		Door Gasket, Magnetic		Appelez-nous	-
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 6.98
11	2209095B		Handle, Door (black)		Appelez-nous	-
11	2209095W		Handle, Door (white)		Appelez-nous	-
11	2209095T		Handle, Door (biscuit)		Appelez-nous	-
12	W11214482		Roller   (Replaces: 2204542)				$ 86.60
13	2209106B		Skin, Door (black)		Appelez-nous	-
13	2209106T		Skin, Door (biscuit)		Appelez-nous	-
13	2209106W		Skin, Door (white)		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.01
15	2207533		Bracket, Assembly Freezer Basket		Appelez-nous	-
16	2207415		Nut				$ 12.03
17	2005376		Basket, Upper		Appelez-nous	-
18	2174124		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 9.58
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2006244		Basket, Freezer Lower		Appelez-nous	-
23	2207550		Roller		Appelez-nous	-
24	2209202		Plate, Door Handle		Appelez-nous	-
25	2207576		Spacer		Appelez-nous	-
