SELECT A DIAGRAM

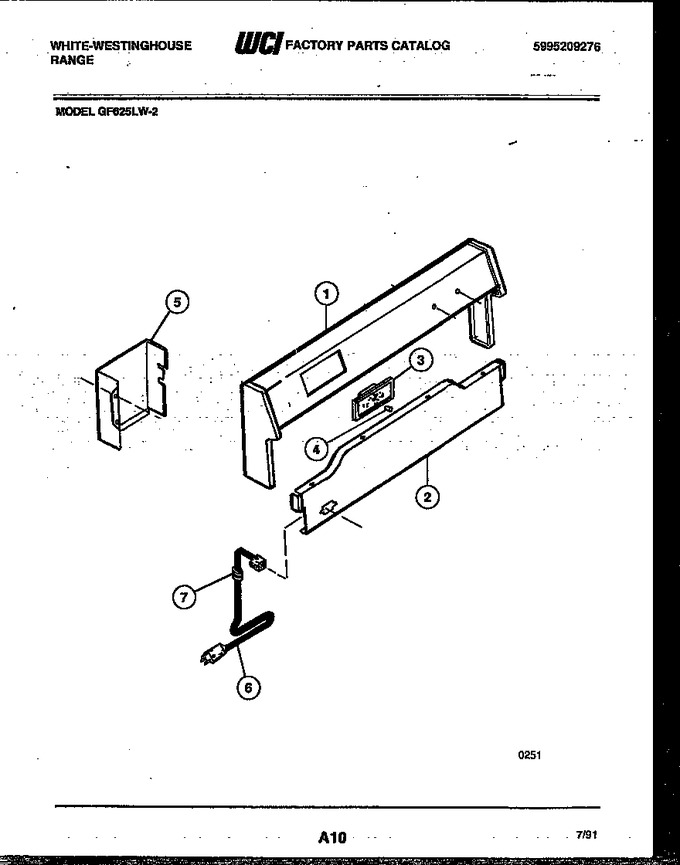

02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276669 | Backguard Assy-almond |
|
- | |||||
| 2 | 3131740 | Backguard Bottom |
|
- | |||||
| 3 | 3051012 | Clock |
|
- | |||||
| 4 | 3051013 | Knob-clock |
|
- | |||||
| 5 | 3051014 | Cover - Clock |
|
- | |||||
| 6 | 5303015249 | Cord - Power |
|
- | |||||
| 7 | 08008255 | Strain - Relief |
|
- | |||||
| *48424 | 08008051 | Bushing - Nylon Snap |
|
- |
