02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

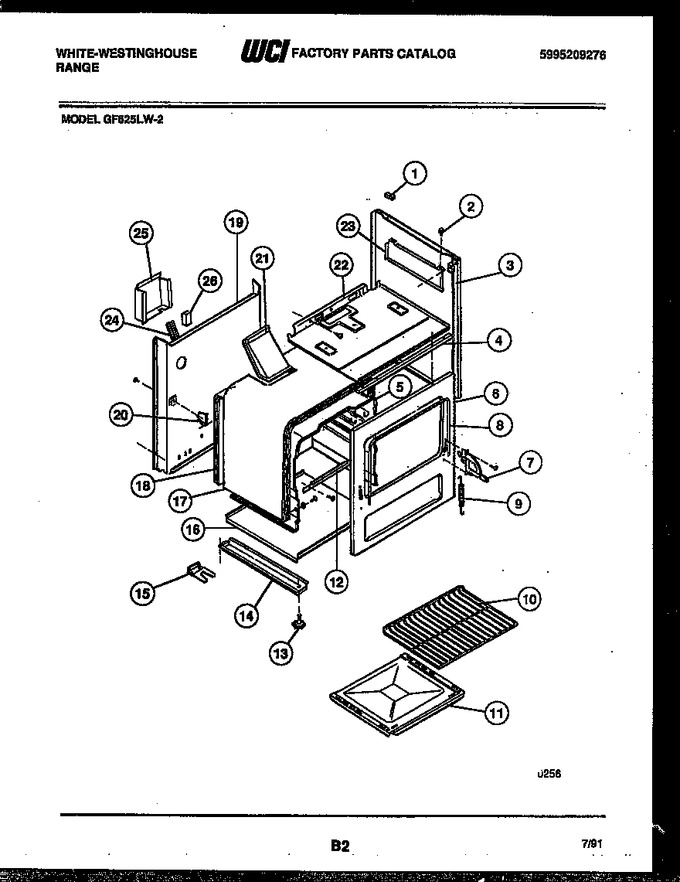

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5308014019		Bodyside - Almond Lh/rh		Appelez-nous	-
4	3131811		Support Control Pnl		Appelez-nous	-
5	3018284		Oven Liner-side Rh		Appelez-nous	-
6	3205578		Front - Frame		Appelez-nous	-
7	5303204672		Hinge-door Lh		Appelez-nous	-
8	5308008022		Seal,oven Door				$ 124.89
9	5303009435		Spring-hinge		Appelez-nous	-
10	5303015714		Rack Oven (2)		Appelez-nous	-
11	3018282		Oven Bottom		Appelez-nous	-
12	3131038		Support - Oven Bttm		Appelez-nous	-
13	318175510		Leveling Leg (4)   (Replaces: 5303210257)			Immediately	$ 24.26
14	5303210256		Base Rail Lh		Appelez-nous	-
15	3934059		Bracket Installation		Appelez-nous	-
16	3011645		Main Bottom		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation - Back		Appelez-nous	-
19	5303013340		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017174		Burner-box		Appelez-nous	-
23	5303131053		Shield-heat-b/s-rh		Appelez-nous	-
24	3131046		Channel Main Back		Appelez-nous	-
25	08013953		Cover-spark Module		Appelez-nous	-
26	5303209931		Spark Module		Appelez-nous	-
*48454	191S018F271		Diagram-wire-(not For Purchase)		Appelez-nous	-
14A	5303210255		Base Rail Rh		Appelez-nous	-
23A	5303131054		Shield-heat-b/s-lh		Appelez-nous	-
23B	3131791		Clip Back Splasher Corner (non-illustrated)				$ 19.01
5A	3018285		Over Liner-side-lh		Appelez-nous	-
5B	3017166		Over Liner-top		Appelez-nous	-
5C	3018995		Oven Liner Back		Appelez-nous	-
7A	5303204670		Hinge-door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
