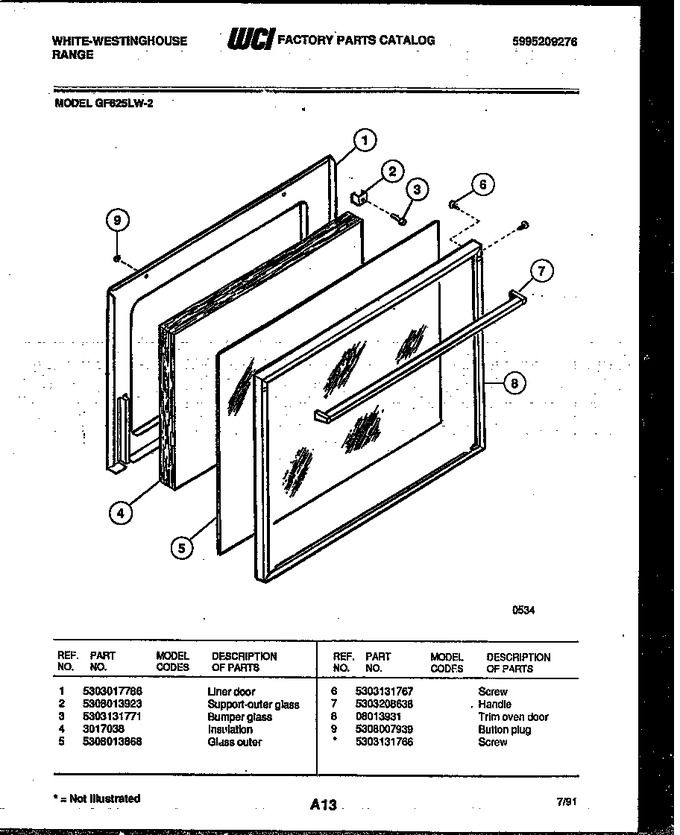

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017786 | Liner-door |
|
- | |||||
| 2 | 5308013923 | Support-outer Glass |
|
- | |||||
| 3 | 5303131771 | Bumper Glass |
|
- | |||||
| 4 | 3017038 | Insulation |
|
- | |||||
| 5 | 5308013868 | Glass Outer |
|
- | |||||
| 6 | 5303131767 | Screw |
|
- | |||||
| 7 | 5303208638 | Handle |
|
- | |||||
| 8 | 08013931 | Trim - Oven Door |
|
- | |||||
| 9 | 5308007939 | Button Plug |
|
- | |||||
| *48438 | 5303131766 | Screw |
|
$ 10.87 |
