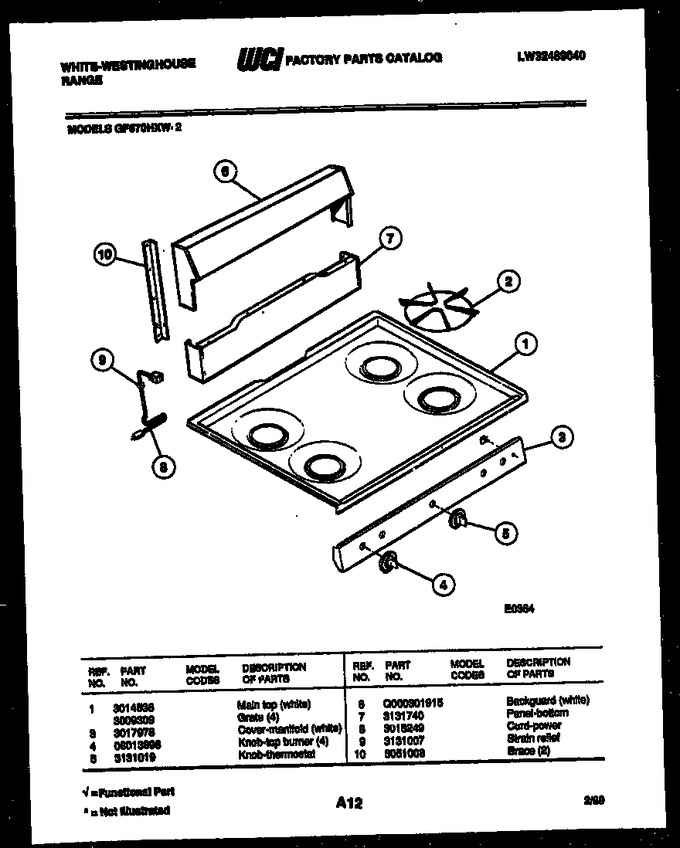

02 - Cooktop Parts And Backguard
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014536 | Main Top (white) |
|
- | |||||
| 3 | 3017978 | Cover-manifold (white) |
|
- | |||||
| 4 | 08013898 | Knob - Top Burner (4) |
|
- | |||||
| 5 | 3131019 | Knob - Thermostat |
|
- | |||||
| 6 | Q000301915 | Backguard (white) |
|
- | |||||
| 7 | 3131740 | Panel - Bottom |
|
- | |||||
| 8 | 3015249 | Cord - Power |
|
- | |||||
| 9 | 3131007 | Strain Relief |
|
- | |||||
| 10 | 3051008 | Brace (2) |
|
- | |||||
| 1A | 3009309 | Grate (4) |
|
- |
