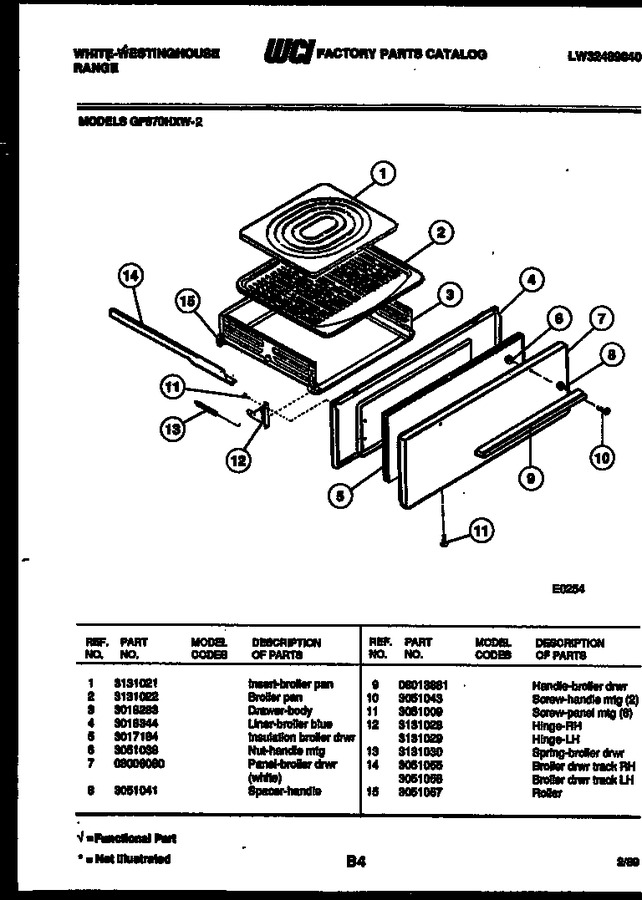

06 - Broiler Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131021		Insert Broiler Pan		Appelez-nous	-
2	3131022		Broiler-pan		Appelez-nous	-
3	3018283		Drawer Body		Appelez-nous	-
4	3018344		Liner-broiler Blue		Appelez-nous	-
5	3017184		Insulation-broiler Drwr		Appelez-nous	-
6	3051038		Nut-handle Mtg		Appelez-nous	-
7	08008080		Panel-broiler (white)		Appelez-nous	-
8	3051041		Spacer-handle		Appelez-nous	-
9	08013881		Handle-broiler Drwr		Appelez-nous	-
10	3051043		Screw Handle Mtg (2)		Appelez-nous	-
11	3051009		Screw Panel Mtg (8)				$ 5.62
12	3131028		Hinge - Rh		Appelez-nous	-
13	3131030		Spring - Broiler Drwr		Appelez-nous	-
14	3051055		Broiler Drwr Track Rh		Appelez-nous	-
15	3051057		Roller		Appelez-nous	-
12A	3131029		Hinge - Lh		Appelez-nous	-
14A	3051056		Broiler-drwr Track Lh		Appelez-nous	-
