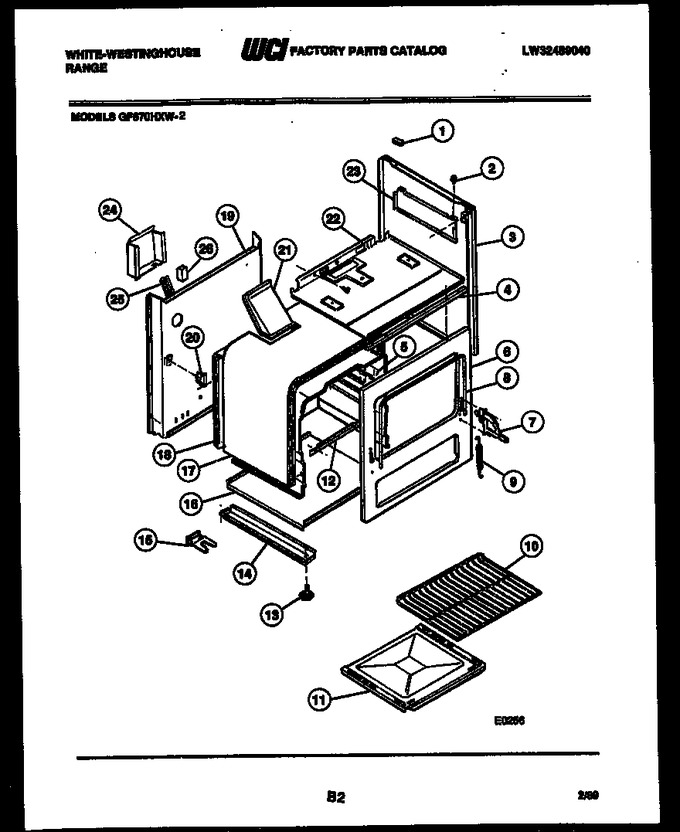

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	08014018		B/s Lh & Rh (white)		Appelez-nous	-
4	3131811		Support Control Pnl		Appelez-nous	-
5	3018709		Liner-oven Side Rh		Appelez-nous	-
6	3017790		Front Frame		Appelez-nous	-
7	3051077		Hinge-door Lh		Appelez-nous	-
8	08008022		Seal-oven Door		Appelez-nous	-
9	08008028		Spring - Oven Door		Appelez-nous	-
10	3015714		Rack-oven		Appelez-nous	-
11	3018282		Oven Bottom		Appelez-nous	-
12	3131038		Support-oven Bottom		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	3051081		Rail Base Lh/rh		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3011645		Main Bottom		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation - Back		Appelez-nous	-
19	3013340		Main Back		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017174		Burner-box		Appelez-nous	-
23	3131053		Shield Heat B/b Rh		Appelez-nous	-
24	08008357		Cover - Spark Module		Appelez-nous	-
25	3131046		Channel - Wire		Appelez-nous	-
26	3015197		Spark - Module		Appelez-nous	-
23A	3131054		Shield Heat B/b Lh		Appelez-nous	-
23B	3009582		Clip-backsplash Crnr (non-illustrated)		Appelez-nous	-
5A	3018710		Liner-oven Side Lh		Appelez-nous	-
5B	3018711		Liner-oven Top		Appelez-nous	-
5C	3202933		Liner-oven Back		Appelez-nous	-
7A	3051078		Hinge-door Rh		Appelez-nous	-
