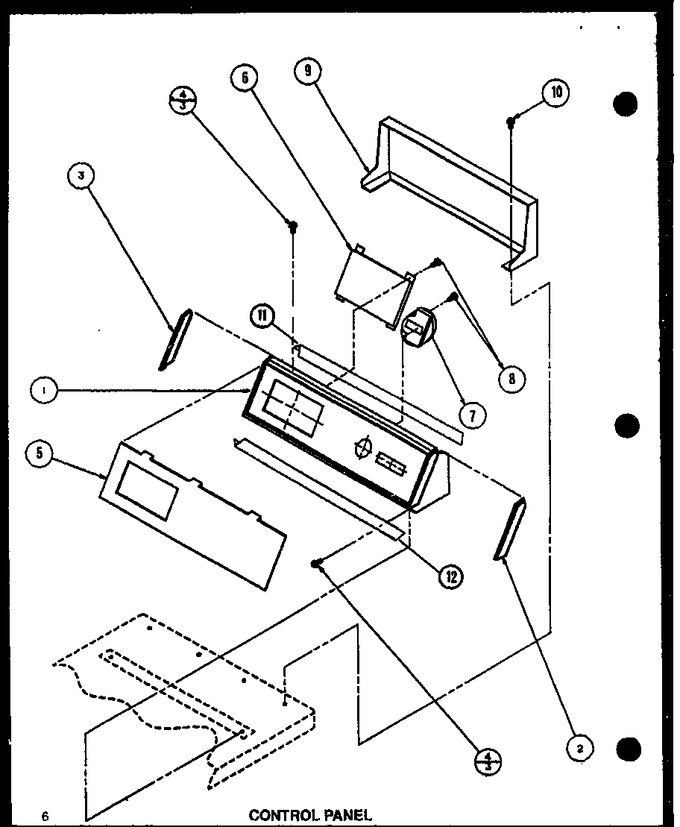

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31224		Hood,control-black		Appelez-nous	-
2	31248		Cap,end-r.h.-chrome		Appelez-nous	-
3	31249		Cap,end-l.h.-chrome		Appelez-nous	-
4	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
5	33961		Panel,graphic-amana		Appelez-nous	-
6	32908		Electronic Control		Appelez-nous	-
7	32903		Switch,pressure-slide		Appelez-nous	-
8	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
9	33619		Control Hood Rear Panel		Appelez-nous	-
10	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
11	31660		Trim,top-amana		Appelez-nous	-
12	32874		Trim,bottom-amana		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
