01 - Control Panel
02 - Front Panel
03 - Inlet Hose
04 - Mixing Valve Assy
05 - Motor
06 - Page 3
07 - Page 8
08 - Power Cord
09 - Pump Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

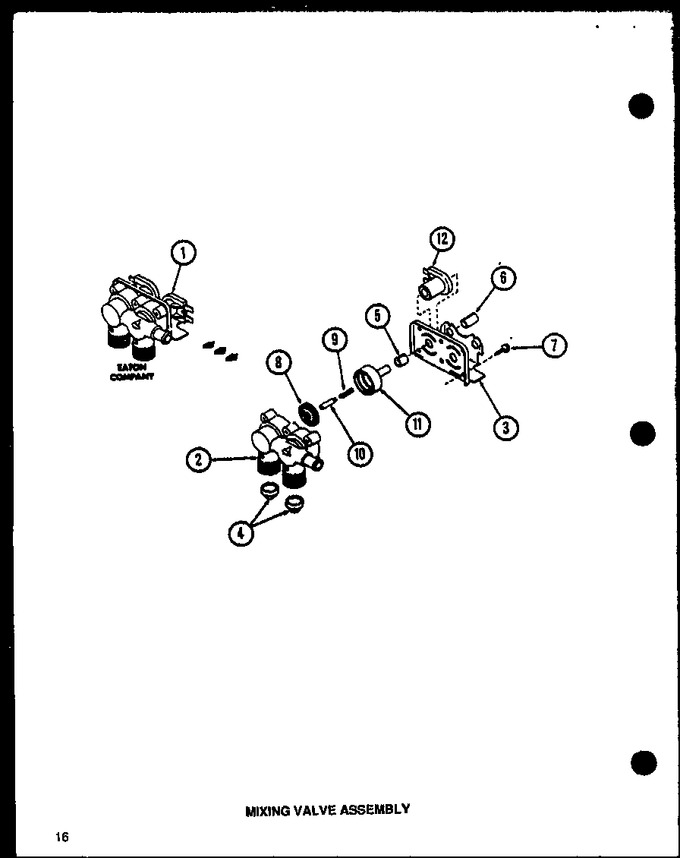

| 1 | 33930P | Valve,mixing (Replaces: 33930) |
|
Immediately | $ 114.73 | ||||
| 2 | Y24159 | Body,valve |
|
- | |||||
| 3 | Y00000000 | See Note Bracket, Mounting |
|
- | |||||
| 4 | 24122 | Inlet Screen |
|
$ 8.42 | |||||
| 5 | 24129 | Sleeve,short |
|
- | |||||
| 6 | 24128 | Sleeve,long |
|
- | |||||
| 7 | 25817C | Screw |
|
- | |||||
| 8 | 24134 | Diaphragm |
|
- | |||||
| 9 | 01952A | Mounting,rubber |
|
- | |||||
| 10 | 24132 | Armature |
|
- | |||||
| 11 | 24130 | Guide,armature |
|
- | |||||
| 12 | 33930A | Solenoid,mixing Valve |
|
- |
