| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

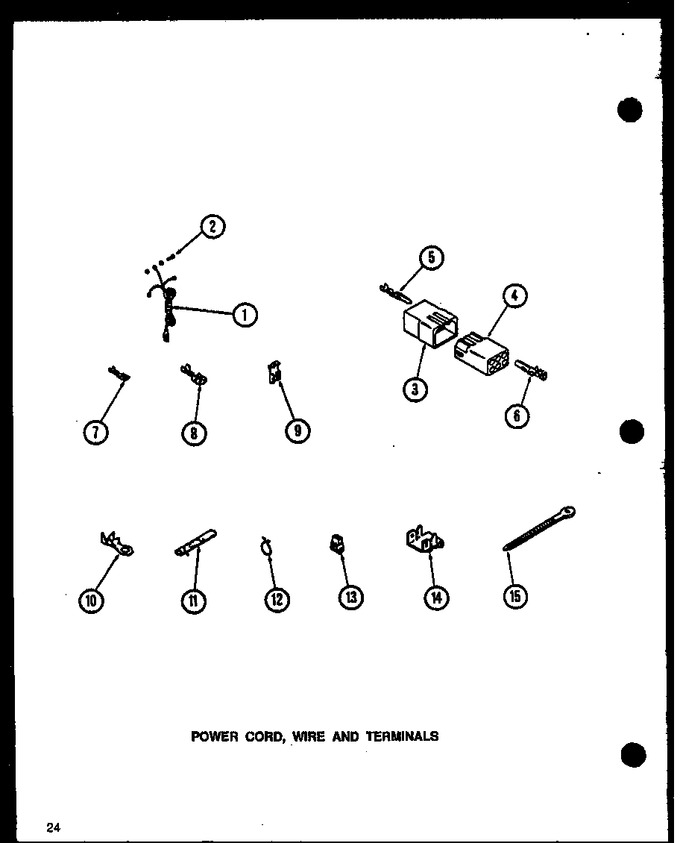

| 1 | 22660 | Power Cord And Plug |
|
$ 39.67 | |||||
| 2 | Sub. To D513139P | Screw,10b-16 X 1/2 Hex (Replaces: 52909) |
|
- | |||||
| 3 | 23041 | Plug,6 Circuit |
|
- | |||||
| 4 | 26708 | Receptacle,6 Circuit |
|
- | |||||
| 5 | Y00116 | Terminal,pin-male |
|
- | |||||
| 6 | Y00117 | Female Socket Terminal |
|
- | |||||
| 7 | 00112 | Terminal,spade-3/16 Fe |
|
- | |||||
| 8 | Y00119 | Spade Terminal(18 Gauge) |
|
- | |||||
| 9 | Y00120 | Terminal,flag-1/4 Fema |
|
- | |||||
| 10 | Y00113 | Terminal,ring-1/4 Stud |
|
- | |||||
| 11 | 21091 | Connector Two 1/4 Inch Male |
|
- | |||||
| 12 | 51291 | Clip,wire |
|
- | |||||
| 13 | 70210 | Insulator,blue |
|
- | |||||
| 14 | Y00161 | Ground Clip |
|
- | |||||
| 15 | COMM PART | Wire Tie (Replaces: 55881) |
|
- | |||||
| NI | 28132 | Assy,motor Harness-1sp |
|
- | |||||
| NI | 34060 | Assy,wire Harness-base |
|
- | |||||
| NI | 33828 | Assy,wiring Harness-mi |
|
- |
