Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 4313691 Spacer Appelez-nous -
5 4313661 Screw Appelez-nous -
7 4174757 Screw, 3 X 8 Mm Appelez-nous -
18 W11233072 Screw,   (Replaces: 4174784) In-Stock Immediately $ 12.62

24 4313674 Thermostat, Oven Appelez-nous -
26 4174826 Screw, 3 X 8 Mm Appelez-nous -
28 WP8184775 Tray, Glass   (Replaces: 4313640) Special Order $ 128.72

29 4313639 Support, Turntable Appelez-nous -
30 4357340 Motor, Turntable Appelez-nous -
31 4313028 Cover, Motor Appelez-nous -
40 4313642 Gasket, Turntable Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

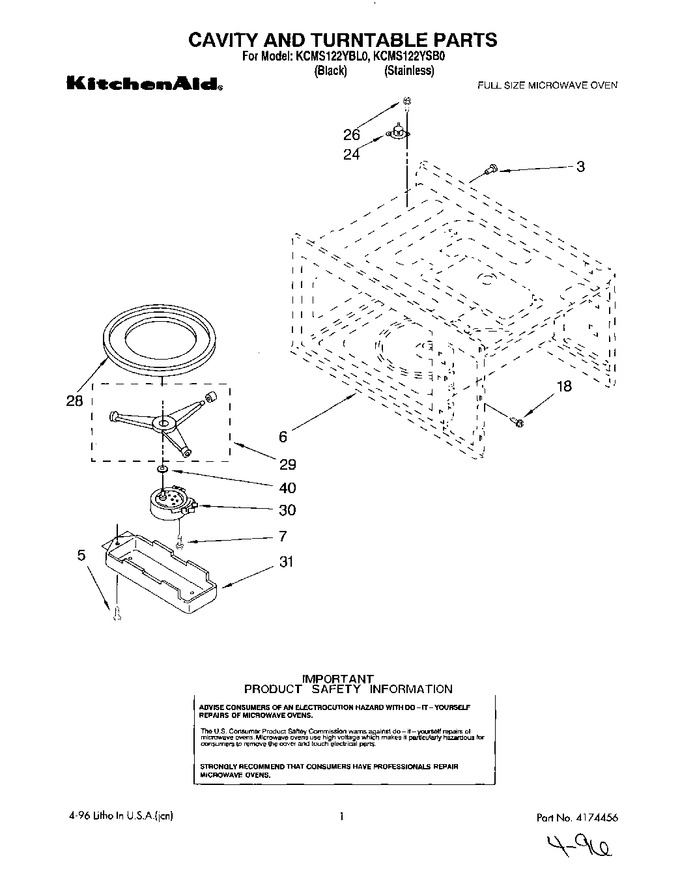

Diagram for KCMS122YSB0
