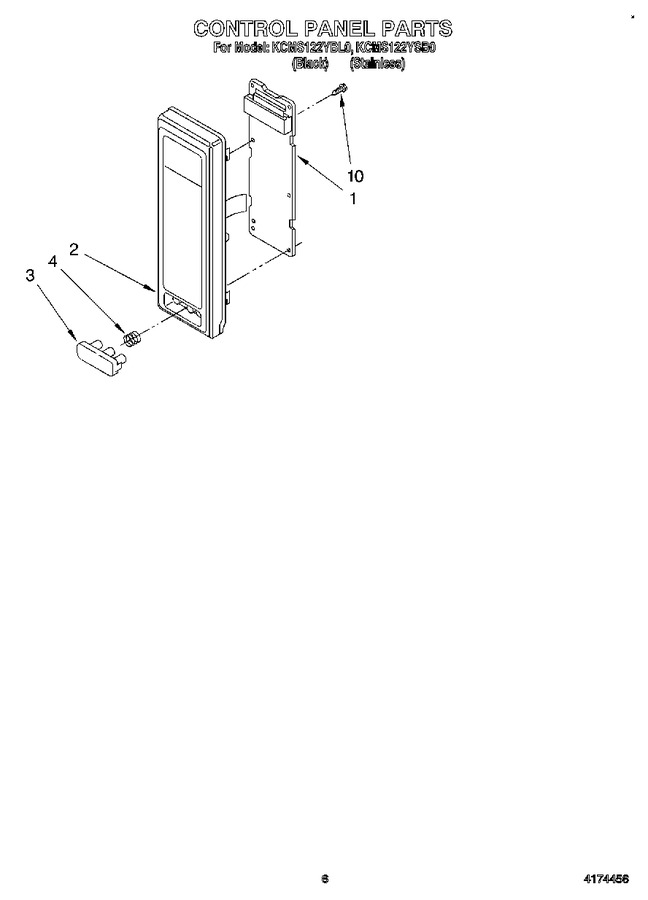

06 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357388		Microcomputer		Appelez-nous	-
2	4313094		Control Panel (black Model)		Appelez-nous	-
2	4313095		Control Panel (stainless Model)		Appelez-nous	-
3	4313088		Push Button (black Model)		Appelez-nous	-
3	4313096		Push Button (stainless Model)		Appelez-nous	-
4	4313631		Spring, Button		Appelez-nous	-
10	4313632		Screw		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	LIT4357907		Manual, Operation		Appelez-nous	-
	LIT4357918		Defrost Label		Appelez-nous	-
	LIT4357909		Quick Set Guide		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
	832889		Cord Brown (1/2 Oz.)				$ 26.23
	261900		Citrine White (6 Oz.)				$ 51.34
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	LIT4357911		Tech Sheet		Appelez-nous	-
	LIT4357919		Cook Book		Appelez-nous	-
