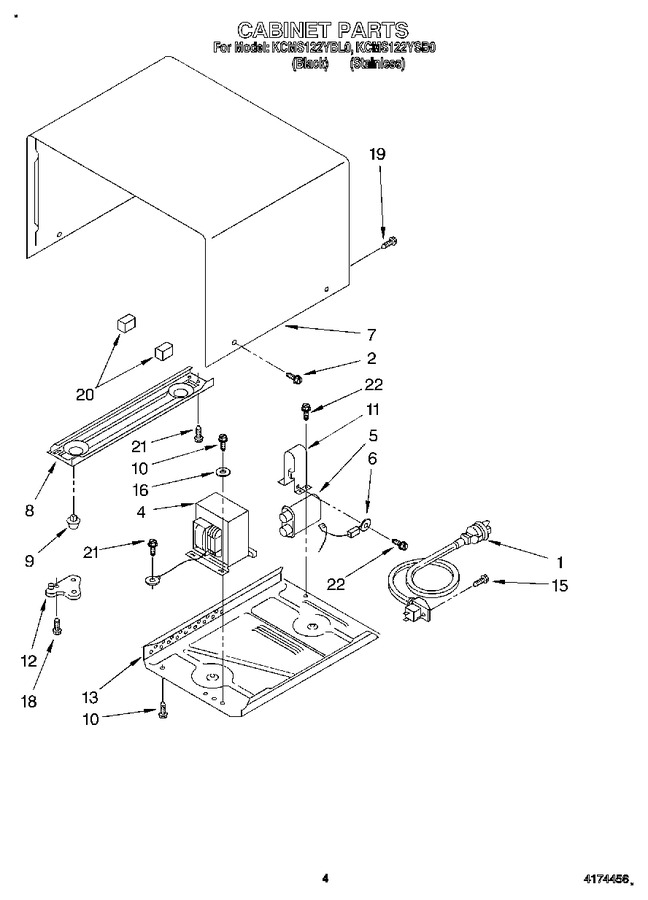

04 - Cabinet


05 - Door And Latch


06 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4313617		Power Cord		Appelez-nous	-
2	4313669		Screw (stainless Model)		Appelez-nous	-
2	4174821		Screw (black Model)		Appelez-nous	-
4	4313615		Transformer		Appelez-nous	-
5	4313605		Capacitor		Appelez-nous	-
6	4313671		Rectifier		Appelez-nous	-
7	4365583		Outer Cabinet (black Model)		Appelez-nous	-
7	4357348		Outer Cabinet (stainless Model)		Appelez-nous	-
8	4357345		Base Plate, Left Side		Appelez-nous	-
9	4313684		Foot (4)		Appelez-nous	-
10	4357320		Screw, 4 X 16 Mm		Appelez-nous	-
11	4313681		Bracket, Capacitor		Appelez-nous	-
12	4313619		Hinge, Lower		Appelez-nous	-
13	4313621		Base Plate, Right Side		Appelez-nous	-
15	4313666		Screw		Appelez-nous	-
16	4365501		Washer		Appelez-nous	-
18	4313664		Screw		Appelez-nous	-
19	4313665		Screw		Appelez-nous	-
20	4313644		Shield, Wire (2)		Appelez-nous	-
21	4313661		Screw		Appelez-nous	-
22	4174811		Screw		Appelez-nous	-
