SELECT A DIAGRAM

02 - Magnetron And Air Flow, Lit/optional

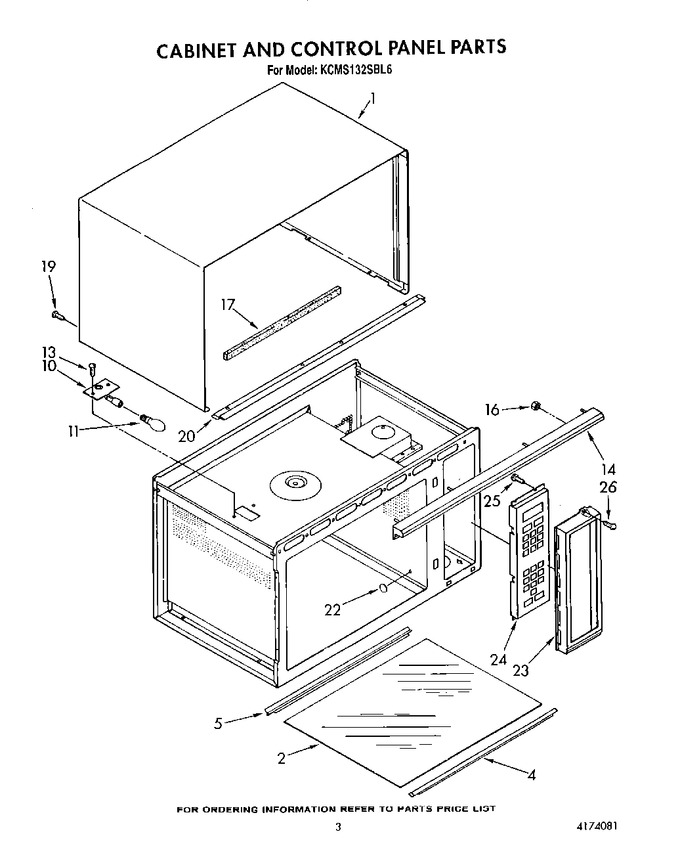

03 - Cabinet And Control Panel


04 - Stirrer Drive


05 - Door And Latch


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147035		Wrapper, Cabinet		Appelez-nous	-
2	313639		Shelf, Cavity		Appelez-nous	-
2	W10841140		Adhesive, Silastic   (Replaces: 307576)			Immediately	$ 24.92
4	313614		Trim, Shelf (front)		Appelez-nous	-
5	313615		Trim, Shelf (rear)		Appelez-nous	-
10	330514		Socket, Complete		Appelez-nous	-
11	WP3395618		Bulb   (Replaces: 313969)			Immediately	$ 71.33
13	312713		Screw (2)		Appelez-nous	-
14	3149315		Grille, Air		Appelez-nous	-
16	3150025		Screw (4)		Appelez-nous	-
17	313753		Seal, Foam		Appelez-nous	-
19	WP488729		Screw (15)   (Replaces: 313638)			Immediately	$ 7.01
20	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
20	3147034		Trim, Wrapper Lower		Appelez-nous	-
22	312215		Plug, Hole (4)		Appelez-nous	-
23	3182407		Frame, Control Panel		Appelez-nous	-
24	3148254		Microcomputer		Appelez-nous	-
25	313818		Screw (6)		Appelez-nous	-
26	313679		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
