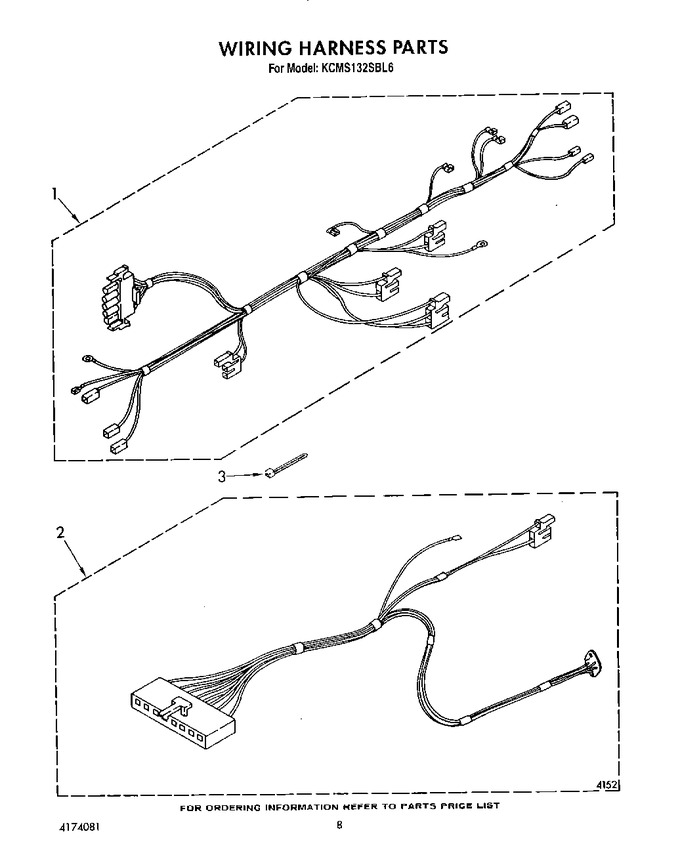

06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3147072 | Harness, Wiring Main |
|
- | |||||
| 2 | 3147164 | Harness, Wiring Control |
|
- | |||||
| 3 | WPW10339879 | Cable, Tie (Replaces: 309330) |
|
$ 7.11 |
