SELECT A DIAGRAM

02 - Magnetron And Air Flow, Lit/optional


03 - Cabinet And Control Panel


04 - Stirrer Drive


05 - Door And Latch


06 - Wiring Harness

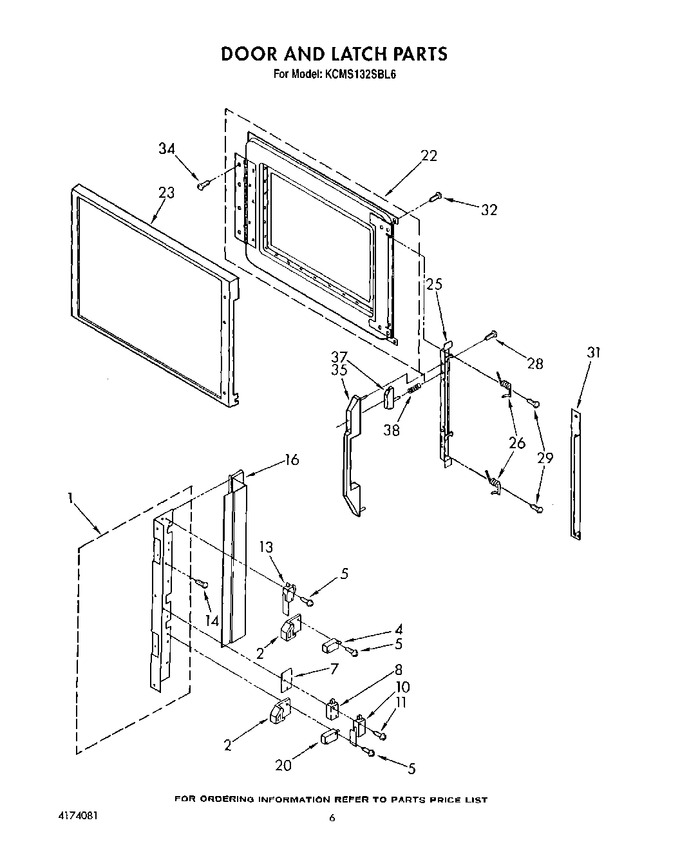

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
5	312717		Screw (8)		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
11	310211		Screw (2) 4-40 X 1 (2)		Appelez-nous	-
13	312717		Screw (2)		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	309080		Screw 8-32 X 3/8		Appelez-nous	-
16	313740		Fastner		Appelez-nous	-
16	3149424		Shield		Appelez-nous	-
20	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
22	3171012		Door, Inner		Appelez-nous	-
23	3172227		Frame, Door		Appelez-nous	-
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
28	303776		Screw (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
31	3148297		End Cap		Appelez-nous	-
32	313823		Screw (4)		Appelez-nous	-
34	WPW10068250		Screw (4)   (Replaces: 311777)				$ 3.66
35	314169		Handle, Door		Appelez-nous	-
37	313611		Button, Door Handle   (Replaces: 314168)				$ 35.65
38	313823		Screw		Appelez-nous	-
38	310197		Spring, Compression		Appelez-nous	-
