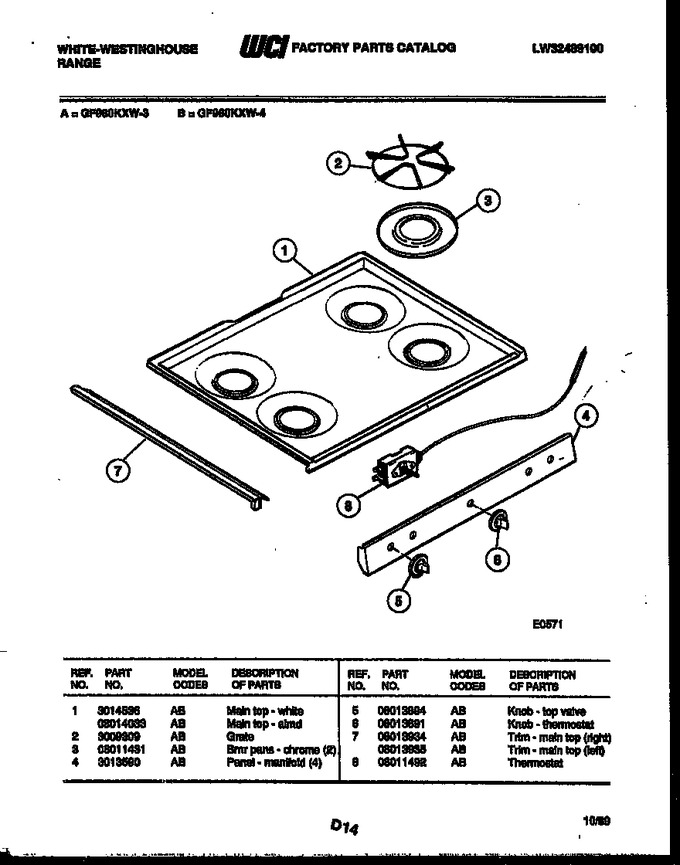

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014536 | Main Top (white) |
|
- | |||||
| 2 | 3009309 | Grate |
|
- | |||||
| 3 | 08011431 | Brnr Pans - Chrome (2) |
|
- | |||||
| 4 | 3013590 | Panel Manifold (4) |
|
- | |||||
| 5 | 08013894 | Knob - Top Valve |
|
- | |||||
| 6 | 08013891 | Knob Thermostat |
|
- | |||||
| 7 | 08013934 | Trim - Main Top (right) |
|
- | |||||
| 8 | 08011492 | Thermostat |
|
- | |||||
| 7A | 08013935 | Trim - Main Top (left) |
|
- |
