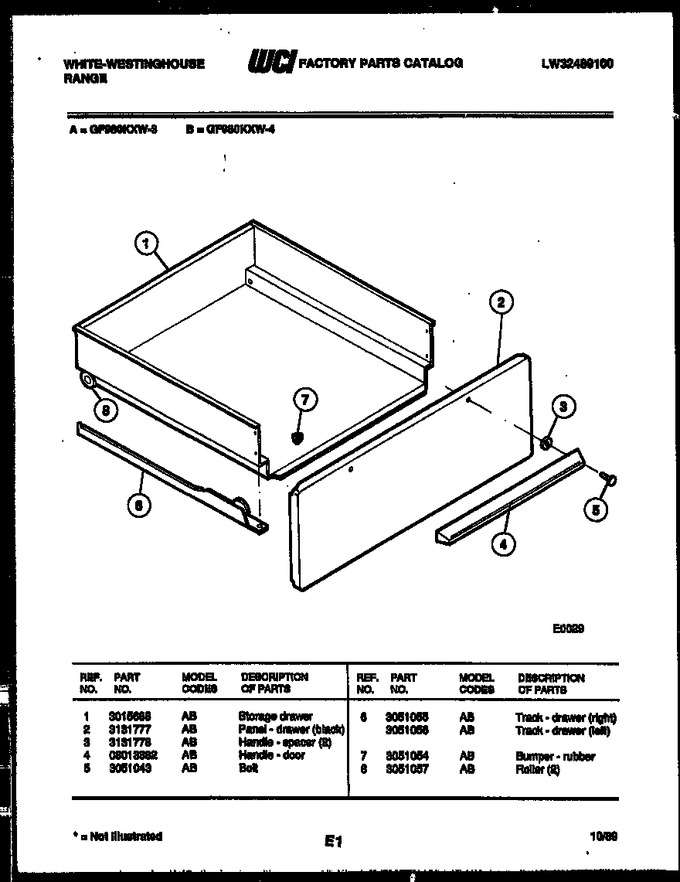

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015688 | Storage Drawer |
|
- | |||||
| 2 | 3131777 | Panel Drawer Black |
|
- | |||||
| 3 | 3131778 | Handle Spacer (2) |
|
- | |||||
| 4 | 08013882 | Handle Door |
|
- | |||||
| 5 | 3051043 | Bolt |
|
- | |||||
| 6 | 3051055 | Track Drawer Right |
|
- | |||||
| 7 | 3051054 | Bumper Rubber |
|
- | |||||
| 8 | 3051057 | Roller (2) |
|
- | |||||
| 6A | 3051056 | Track Drawer Left |
|
- |
