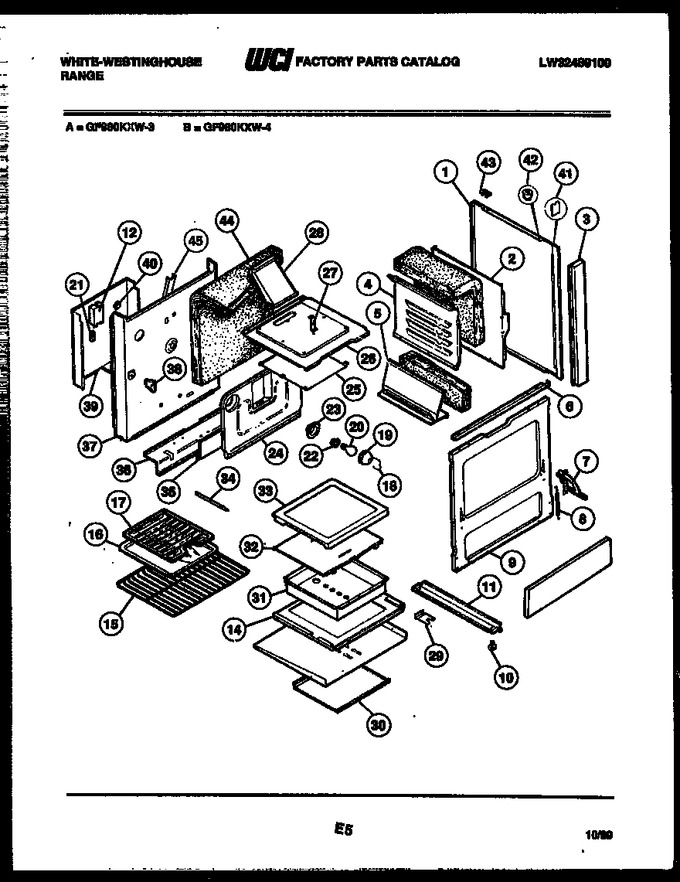

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Burner Box Parts
04 - Cooktop Parts
05 - Drawer Parts
06 - Door Parts
07 - Burner, Manifold And Gas Control
08 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051061 | Bodyside-panel White (2) |
|
- | |||||
| 2 | 3131794 | Shield Side Heat (2) |
|
- | |||||
| 3 | 08014088 | Trim-body Side (2) |
|
- | |||||
| 4 | 3016533 | Liner-right Side |
|
- | |||||
| 5 | 3131820 | Retainer - Bttm Insul |
|
- | |||||
| 6 | 3131811 | Supt-control Panel |
|
- | |||||
| 7 | 3205895 | Hinge - Oven Dr Right |
|
- | |||||
| 8 | 3009435 | Spring - Oven Dr (2) |
|
- | |||||
| 9 | 3205905 | Frame-front |
|
- | |||||
| 10 | 3051080 | Leg Leveler (4) |
|
- | |||||
| 11 | 08068047 | Rail - Base (2) |
|
- | |||||
| 12 | 3015197 | Module-spark |
|
- | |||||
| 14 | 12055 | Lining - Oven Bottom |
|
- | |||||
| 15 | 3015714 | Rack - Oven (2) |
|
- | |||||
| 16 | 3016973 | Pan-broiler |
|
- | |||||
| 17 | 3016974 | Grid-broiler Pan |
|
- | |||||
| 18 | 3205904 | Retainer Oven Light Lens |
|
- | |||||
| 19 | 3131809 | Lens-oven Light |
|
- | |||||
| 20 | 3013071 | Bulb-oven |
|
- | |||||
| 21 | 08007985 | Terminal Box |
|
- | |||||
| 22 | 3009410 | Receptacle-oven Light |
|
- | |||||
| 23 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 24 | 3200915 | Liner Oven Back |
|
- | |||||
| 25 | 08011509 | Baffle - Oven Burner |
|
- | |||||
| 26 | 3131802 | Liner Oven Top |
|
- | |||||
| 27 | 3131800 | Bracket,burner Box |
|
- | |||||
| 28 | 3016877 | Vent Box Assembly |
|
- | |||||
| 29 | 3934059 | Anti - Tip Bracket |
|
- | |||||
| 30 | 08068050 | Shield-storage Drwr |
|
- | |||||
| 31 | 08068046 | Pan Oven Burner |
|
- | |||||
| 32 | 08068032 | Baffle - Oven Bottom |
|
- | |||||
| 33 | 3016975 | Oven-bottom Plate |
|
- | |||||
| 34 | 32011070 | Shield - Capillary Bulb |
|
- | |||||
| 35 | 08068039 | Cover Control Valve |
|
- | |||||
| 36 | 3131831 | Supt - Control Valve |
|
- | |||||
| 37 | 3131833 | Back-main |
|
- | |||||
| 38 | 3051096 | Support,oven Rear |
|
- | |||||
| 39 | 08068036 | Cover - Back Wire |
|
- | |||||
| 40 | 3131839 | Thermostat Bake Broil Select |
|
- | |||||
| 41 | 3131791 | Clip-backsplash Cover |
|
$ 19.01 | |||||
| 42 | 3051063 | Grommet Plastic |
|
- | |||||
| 43 | 3016129 | Grommet Main Top |
|
- | |||||
| 44 | 3131795 | Insulation - Wrap |
|
- | |||||
| 45 | 3131046 | Channel - Main Wire |
|
- | |||||
| 44A | 3131840 | Insulation-top & Back |
|
- | |||||
| 4A | 3016534 | Liner-left Side |
|
- | |||||
| 7A | 3205894 | Hinge - Oven Dr Left |
|
$ 55.91 |
