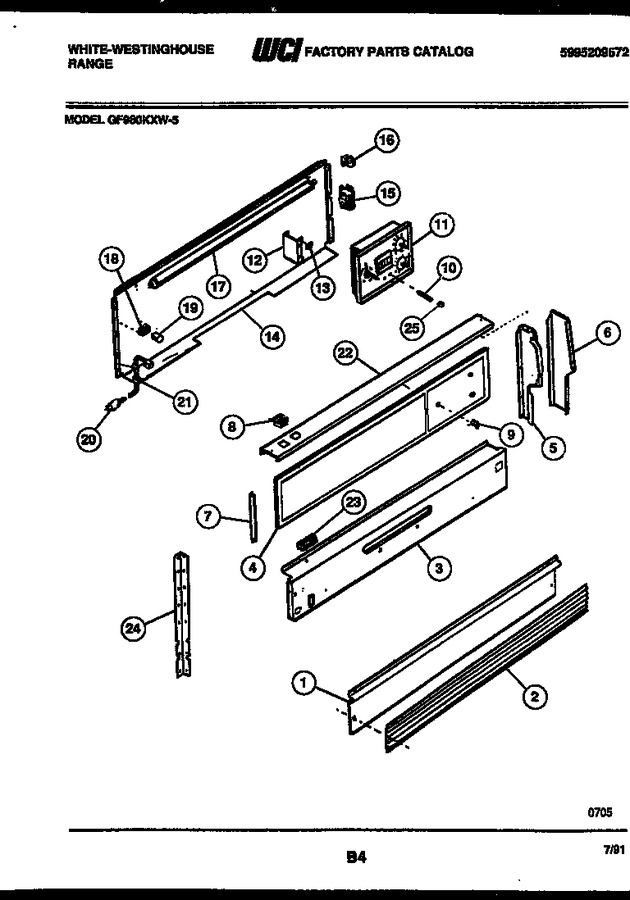

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007904 | Trim-backguard-bttm |
|
- | |||||
| 2 | 5303009482 | Trim-vent |
|
- | |||||
| 3 | 3017485 | Plate - Backguard Flue |
|
- | |||||
| 4 | 5300301890 | Glass-backguard |
|
- | |||||
| 5 | 5308007899 | Bracket-backguard Right |
|
- | |||||
| 6 | 5308007909 | End Cap-backguard Left |
|
- | |||||
| 7 | 82052000 | Trim-backguard Gl (2) |
|
- | |||||
| 8 | 5308015487 | Switch-light (2) |
|
$ 61.43 | |||||
| 9 | 5303131756 | Knob-clock (3) |
|
- | |||||
| 10 | 3206088 | Light-ind Clean |
|
- | |||||
| 11 | 5303017328 | Clock |
|
- | |||||
| 12 | 5308007924 | Bracket-clock Mtg |
|
- | |||||
| 13 | 5308007925 | Speed-nut (4) |
|
- | |||||
| 14 | 3017486 | Housing - Backguard |
|
- | |||||
| 15 | 5303131832 | Ballast |
|
- | |||||
| 16 | 08016292 | Lampholder - Left |
|
- | |||||
| 17 | 5308068058 | Bulb-fluorescent |
|
- | |||||
| 18 | 08068057 | Base-starter |
|
- | |||||
| 19 | 5308068062 | Starter-fluor Light |
|
$ 30.46 | |||||
| 20 | 5303015249 | Cord |
|
- | |||||
| 21 | 08008255 | Strain - Relief |
|
- | |||||
| 22 | 5308016294 | Trim-backguard |
|
- | |||||
| 23 | 5308008071 | Terminal Block |
|
- | |||||
| 24 | 5308013296 | Brace (2) |
|
- | |||||
| 25 | 5308006417 | Lens-signal Light |
|
$ 19.06 | |||||
| *24245 | 3015250 | Nylon Insulation |
|
- | |||||
| 16A | 08016293 | Lampholder - Right |
|
- | |||||
| 5A | 5308007900 | Bracket-backguard Left |
|
- | |||||
| 6A | 5308007898 | End Cap-backguard Right |
|
- |
